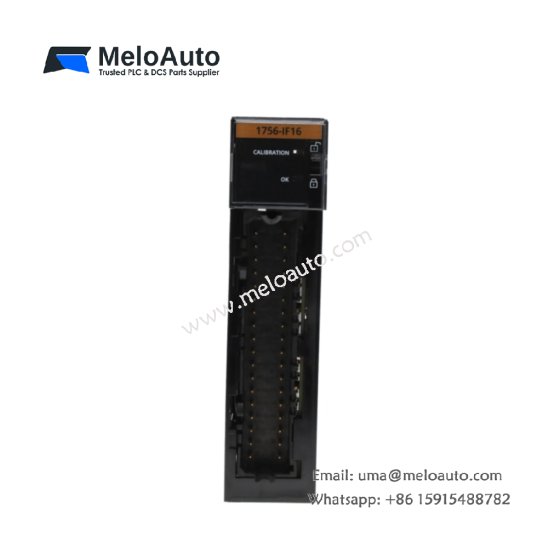

Analog input module

What is an Analog Input Module?

An Analog Input Module (AI Module) is a key component in industrial automation and control systems. It captures continuous (analog) signals from sensors, converts them into digital data, and transmits them to a PLC (Programmable Logic Controller) or DCS (Distributed Control System) for processing.

Key Functions

• Signal Acquisition – Captures real-world analog signals like voltage, current, temperature, and pressure.
• Analog-to-Digital Conversion (ADC) – Converts continuous analog signals into discrete digital values.
• Isolation & Noise Reduction – Protects systems from electrical interference.
• Scaling & Calibration – Adjusts input values to match system requirements.

Common Applications

• Industrial Automation – Monitors temperature, pressure, and flow for process control.
• Energy & Power Systems – Tracks voltage, current, and frequency in electrical grids.
• Oil & Gas – Collects sensor data for pipeline and refinery monitoring.
• Water Treatment – Measures pH levels, turbidity, and chemical concentrations.
• Medical Devices – Captures signals from biomedical sensors.

Types of Analog Input Modules

• Voltage Input Modules (0-10V, ±10V) – General-purpose signal acquisition.
• Current Input Modules (4-20mA, 0-20mA) – Industrial standard, resistant to noise.
• Thermocouple Input Modules – Specialized for temperature monitoring.
• RTD Input Modules – High-precision temperature measurement.

Advantages of Analog Input Modules

• High Accuracy – Ensures precise signal measurement.
• Versatility – Compatible with multiple sensor types.
• Real-time Automation – Enhances system efficiency.
• Scalability – Easily expandable with additional sensors.
