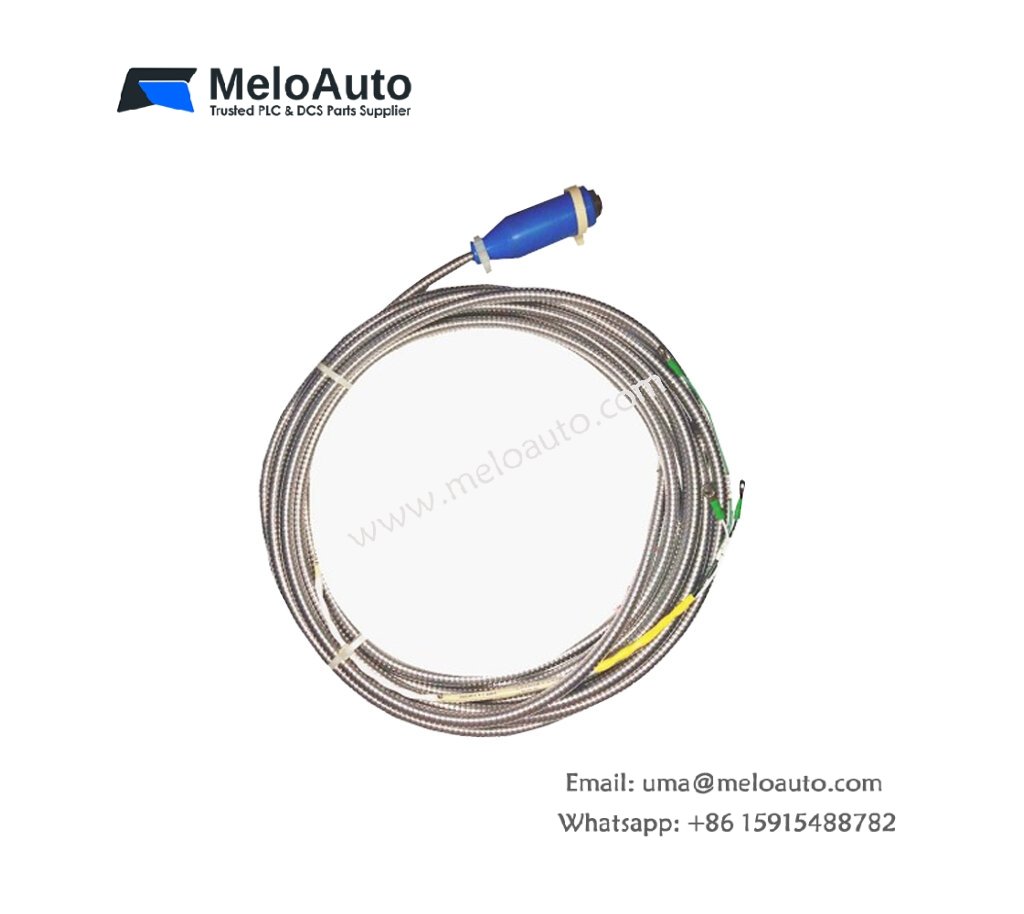

106765-07 | BENTLY NEVADA Interconnect Cable

The 106765-07 Bently Nevada Interconnect Cable is a high-performance cable designed to support reliable signal transmission for vibration monitoring systems. Below are its key specifications and ordering details:

Electrical Specifications

Sensitivity:
- 3.94 mV/mm/s (100 mV/in/s) ±5%.
Frequency Response:
- 4.5 to 2,000 Hz (270 to 120,000 cpm), ±3.0 dB.
- 6.0 to 1,000 Hz (360 to 60,000 cpm), ±0.9 dB.
Temperature Sensitivity:
- -14% to +7.5% over the operating temperature range.
Velocity Range:
- Up to 1270 mm/s (50 in/s) peak.
Transverse Sensitivity:
- Less than 5% of sensitivity.
Amplitude Linearity:
- ±2% to 152 mm/s (6 in/s) peak.
Mounted Resonant Frequency:
- Greater than 12 kHz.
Broadband Noise Floor:
- 0.004 mm/s (160 µin/s) rms nominal, for frequencies from 4.5 Hz to 2 kHz.
Maximum Cable Length:
- Up to 305 metres (1,000 feet) with Bently Nevada part number 02173007, ensuring no signal degradation.

Environmental Limits

Operating Temperature Range:
- -55 °C to +121 °C (-67°F to +250°F).
Shock Survivability:
- Up to 5000 g peak, maximum.
Relative Humidity:
- Withstands up to 100% humidity, provided the case is not submerged. The hermetically sealed case ensures durability.
Magnetic Field Susceptibility:
- Less than 51 µin/s/gauss for a 50 gauss field at 50–60 Hz.

Physical Specifications

Weight:
- Typical weight is 156 g (5.5 oz).
Dimensions:
- Diameter: 28 mm (1.1 in).
- Height: 73.1 mm (2.88 in).
Case Material:
- 316L stainless steel, ensuring corrosion resistance.
Connector:
- 2-pin Mil-C-26482, hermetically sealed with a 316L stainless steel shell.
Mounting Torque:
- Maximum 45 N-m (33 ft-lb).
Polarity:
- Pin A is positive relative to Pin B when the sensor case moves toward the connector.
Cable Bend Radius:
- Minimum bend radius of 1.5 inches.

Ordering Information

The 106765-AA Interconnect Cable can be ordered in lengths specified by the customer:

Minimum Length: 1 metre (3.3 feet).
Maximum Length: 25 metres (82 feet).
Increment: Orderable in increments of 3 metres.

Example:
For a 7-metre cable, the part number is 106765-07.
