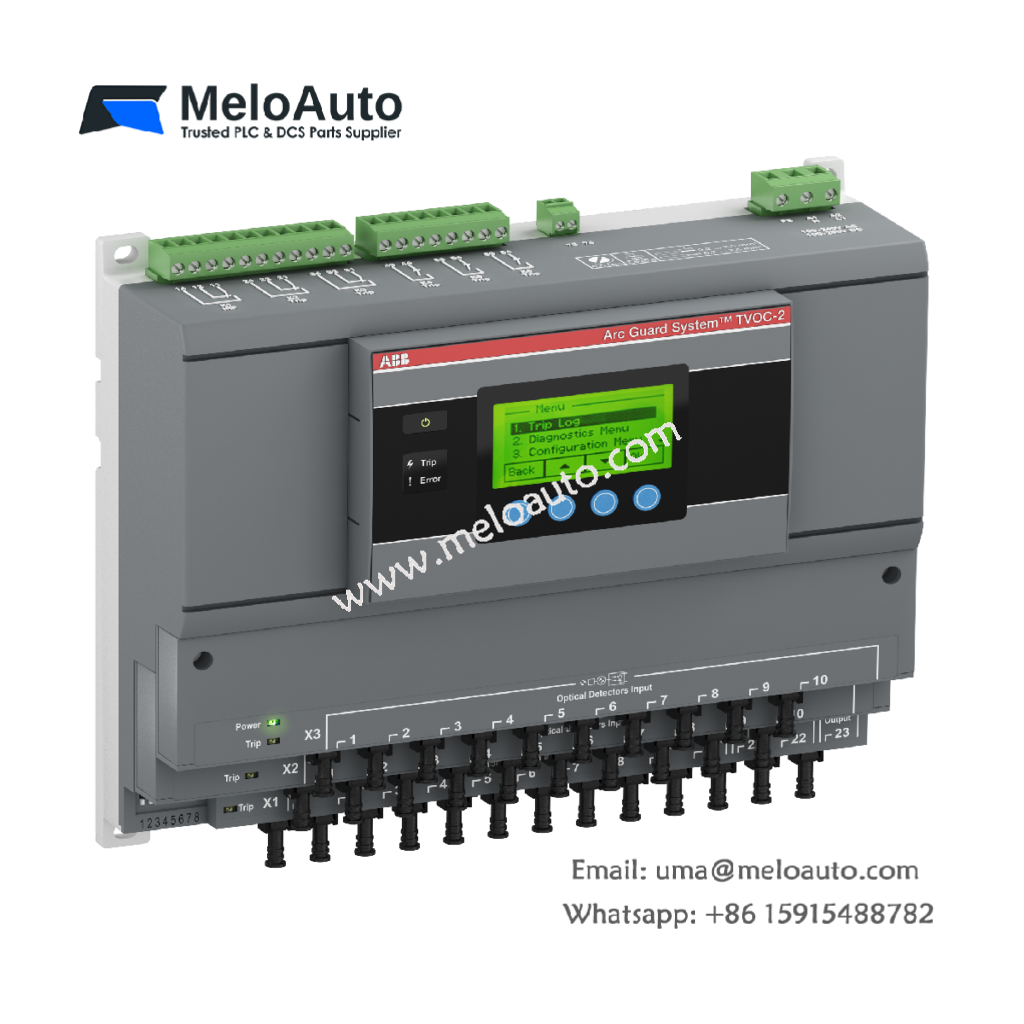

1SFA664001R1001 | ABB TVOC-2-240 Arc Monitor

General Information

• Extended Product Type: TVOC-2-240
• Product ID: 1SFA664001R1001
• EAN: 7320500382172
• Catalog Description: TVOC-2-240 Arc Monitor

Long Description:

• The TVOC – 2 Arc Guard System is an arc protection relay.
• It mitigates arc faults and protects people and equipment.
• The Arc monitor is the main unit of the system.
• It detects arc light and sends a signal in 1 ms.
• The monitor has 10 detector inputs and can trip 3 breakers.
• Up to 2 extension units can expand detectors to 30.
• It includes an HMI that can be placed outside the door.
• Detectors come in various lengths for switchgear design.
• Supply voltage is 100 – 250 V DC or 100 – 240 V AC 50/60 Hz.
• Accessories include current sensing unit, cables, etc.

Material Compliance

• REACH Declaration: Reach Declaration ABB Arc Guard System
• RoHS Information: 2AGS2022 – 006277 – RoHS
• RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
• Toxic Substances Control Act – TSCA: 2CMT001035D0902a

Environmental

• Ambient Air Temperature:
  • Operation: -25… +55 °C
  • Storage: -25… +55 °C
• Environmental Information: Product Environmental Information Arc guard system TVOC – 2

Ordering

• Order Code US and Canada: TVOC-2-240
• E – Number (Finland): 2712000
• E – Number (Norway): 4116451
• E – Number (Sweden): 2801705
• EAN: 7320500382172
• Minimum Order Quantity: 1 piece
• Customs Tariff Number: 85389099

Dimensions

• Product Net Width: 210 mm
• Product Net Height: 230 mm
• Product Net Depth / Length: 80 mm
• Product Net Weight: 1.2 kg

Container Information

• Package Level 1 Units: 1 box
• Package Level 1 Width: 260 mm
• Package Level 1 Height: 125 mm
• Package Level 1 Depth / Length: 215 mm
• Package Level 1 Gross Weight: 1.27 kg
• Package Level 1 EAN: 7320500382172
• Package Level 2 Units: 1 piece

Additional Information

• Additional Information: ARC MONITOR TVOC – 2
• Product Main Type: TVOC – 2
• Product Name: Arc Monitor
• Suitable For: TVOC – 2

Technical

• Mounting Type: Wall mounted or DIN
• Number of Auxiliary Contacts CO (SPDT): 3
• Number of Auxiliary Contacts NC: 0
• Number of Auxiliary Contacts NO: 3
• Power Loss: 1.5 W
• Rated Operational Voltage: 100… 240 V AC/DC
• Terminal Type: Screw Terminals

Certificates and Declarations

• BV Certificate: BV Certificate, TVOC – 2
• CSA Certificate: cULus Certificate, Arc Guard System, TVOC – 2 incl. accessories
• cULus Certificate: cULus Certificate, Arc Guard System, TVOC – 2 incl. accessories
• Data Sheet, Technical Information: Arc Guard System – TVOC – 2 – Edition May 2023
• Declaration of Conformity – CE: CE Declaration of Conformity – Arc Guard System – TVOC – 2
• DNV Certificate: DNV Certificate, TVOC – 2, CSU – 2
• EAC Certificate: EAC – certificate, ArcGuard, TVOC – 2
• UL Certificate: cULus Certificate, Arc Guard System, TVOC – 2 incl. accessories
• Instructions and Manuals: Installation and maintenance guide, TVOC – 2
• Instructions and Manuals (Part 2): Installation and maintenance guide, TVOC – 2

External Classifications and Standards

• ETIM 8: EC002911 – Arc detection system
• ETIM 9: EC002911 – Arc detection and mitigation system
• IDEA Granular Category Code (IGCC): 3594 >> Interface module
• Object Classification Code: B
• UNSPSC: 32151802
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
• eClass: V11.0 : 27142214

Categories

•  Products: Products›Low Voltage Products and Systems›Circuit Breakers›External Digital Unit›Arc Guard System

• Parts: Parts & Services›Medium Voltage Products and Systems›Service›Spares and Consumables›Parts›All Spare Parts (Relays – SWG – CB)

---
