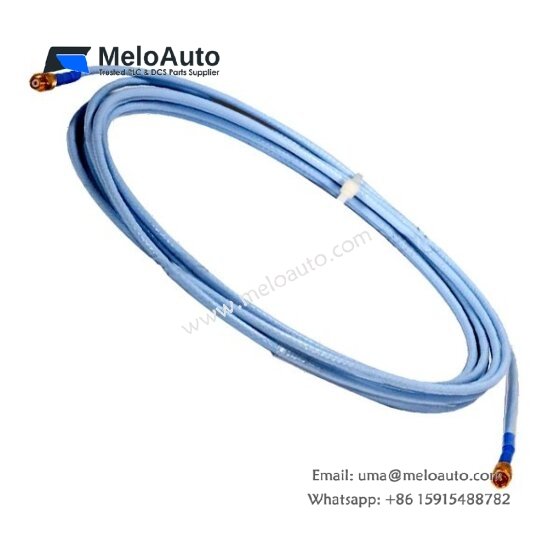

330130-085-03-05 | Bently Nevada 3300 XL Standard Extension Cable

Technical Specifications

Extension Cable Material

• Standard Cable: 75Ω triaxial, fluoroethylene propylene (FEP) insulated
• Extended Temperature Range Cable: 75Ω triaxial, perfluoroalkoxy (PFA) insulated
• Minimum Cable Bend Radius: 25.4 mm (1.0 in)
  • Note: 3300 XL 8 mm components are electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components when minimum cable bend radius is maintained.
• Connector Material: Gold-plated brass or gold-plated beryllium copper
• Maximum Connector Torque: 0.565 N•m (5 in•lbf)

Length Specifications

• System Length Options: 5 or 9 meters (including extension cable) or 1 meter (probe only)

Weight

• Total System Weight (Typical): 0.7 kg (1.5 lb)
• Probe Weight: 323 g/m (11.4 oz/ft)
• Extension Cable Weight: 34 g/m (0.4 oz/ft)

Temperature Range for Extension Cable

• Standard Cable:
  • Operating and Storage Temperature: -52°C to +177°C (-62°F to +350°F)
• Extended Temperature Range Cable:
  • Operating and Storage Temperature: -52°C to +260°C (-62°F to +500°F)

---

Ordering Information for Extension Cables

330130-085-03-05 | 3300 XL Standard Extension Cable
Ensure that the extension cable length and probe length together equal the required Proximitor Sensor total length.

Options:

• A: Cable Length Option
  • 085: 8.5 meters (27.9 feet)
• B: Connector Protector and Cable Option
  • 03: Armored cable with connector protector
• C: Agency Approval Option
  • 05: CSA, ATEX, IECEx Approvals

---
