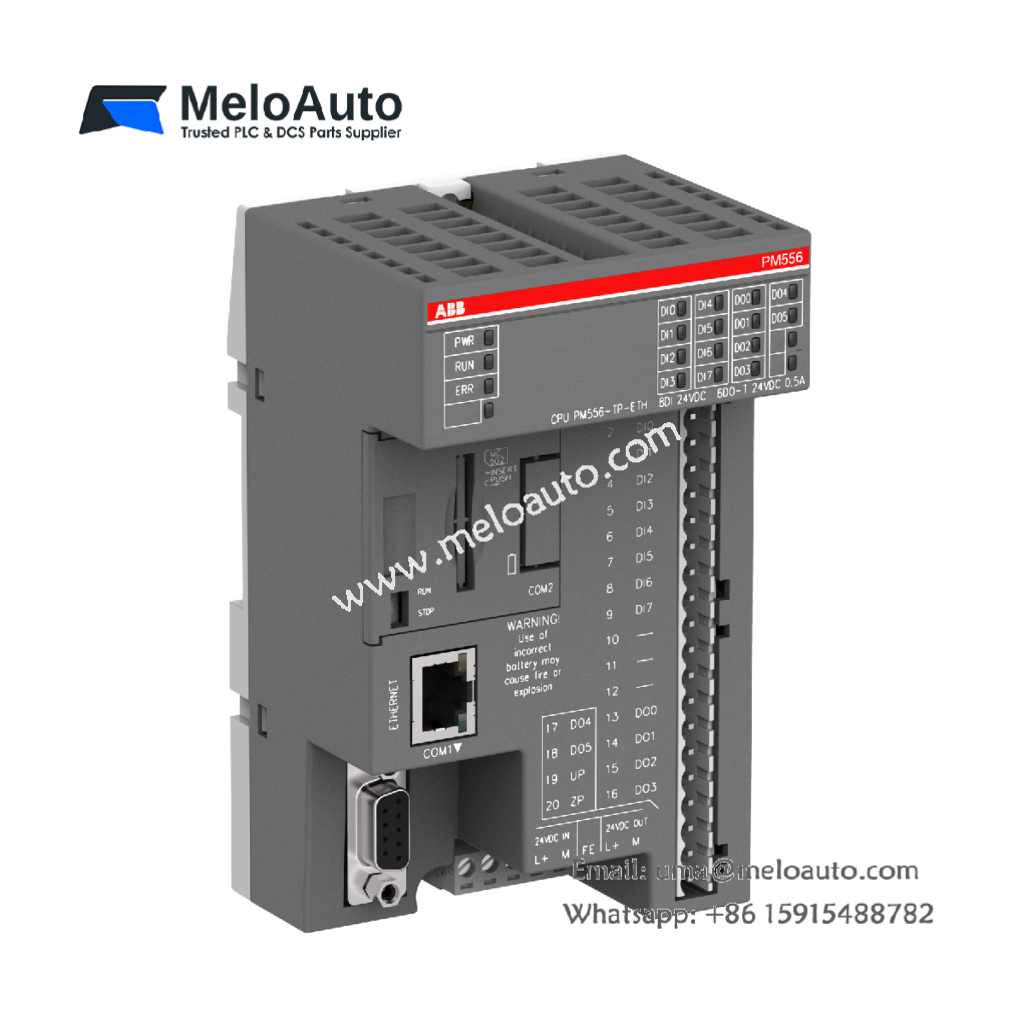

ABB PM556-TP-ETH | AC500 Programmable Logic Controller Module

General Information

• Product Type: PM556-TP-ETH

• Product ID: 1SAP121200R0071

• ABB Type Designation: PM556-TP-ETH

• EAN: 4016779927567

• Catalog Description: AC500 Programmable Logic Controller (PLC)

• Long Description:

  • 512 kB memory

  • 8 digital inputs (DI) / 6 digital outputs (DO)

  • Ethernet communication (ETH)

  • 24V DC power supply

  • 1x RS485 port

  • 2x Option Slots

Ordering Information

• CN8 Code: 85371091

• Invoice Description: PM556-TP-ETH: AC500, Programmable Logic Controller

• Made To Order: No

• Minimum Order Quantity: 1 piece

• Order Multiple: 1 piece

• Selling Unit of Measure: Piece

Dimensions & Weight

• Net Weight: 0.28 kg

• Gross Weight: 0.446 kg

• Net Dimensions:

  • Depth/Length: 74 mm

  • Height: 135 mm

  • Width: 82 mm

Technical Specifications

• Number of Hardware Interfaces:

  • Industrial Ethernet: 1

  • RS-485: 1

  • Other Communication Ports: 0 (No RS-232, RS-422, USB, Wireless, etc.)

• Memory:

  • Total Size: 642 kB

  • User Data Type: RAM

• Processing Time: 0.00008 ms

• I/O Configuration:

  • Digital Inputs (DI): 8

  • Digital Outputs (DO): 6

  • Configurable I/Os: 0

• Power Supply:

  • Input Voltage Type: DC

  • Rated Voltage: 24 V DC

  • Operating Voltage Range: 20.4 – 28.8 V DC

Classification & Compliance

• Product Family: PM556

• Product Name: Distributed Automation PLCs

• eClass: 27-24-22-07

• ETIM Classification: EC000236 – PLC CPU-module (ETIM 8, 9, 10)

• UNSPSC Code: 32151705

• SCIP Compliance (Germany): 2a63d61d-7ffc-43ef-9637-a33f2e73e31c

• WEEE Category: 5 (Small Equipment, No External Dimension More Than 50 cm)

• WEEE Compliance: Business To Business (B2B)

Applications

• Industrial Automation

• Distributed Control Systems (DCS)

• Machine Automation

• Process Control Systems

• SCADA Integration
