ABB Procontic T200 07NG61R1 | GJV3074311R1 Power Supply Unit

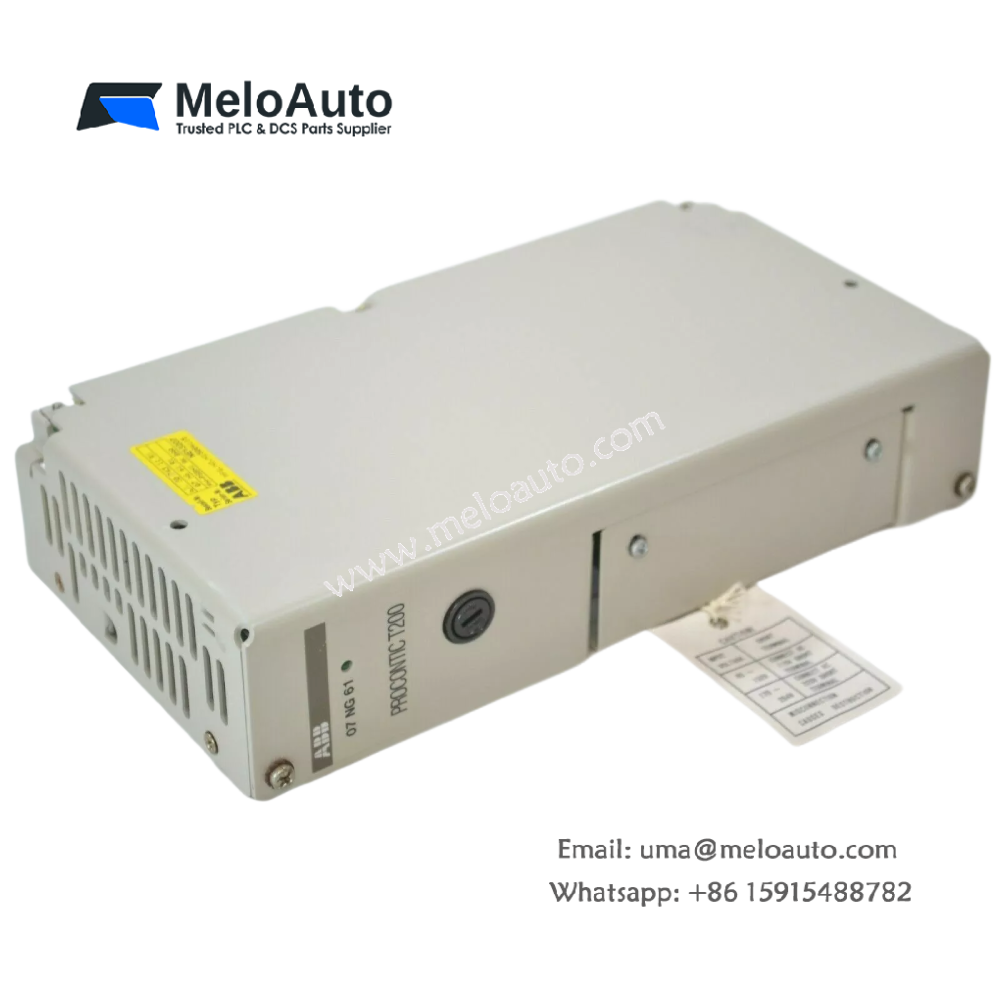

The ABB 07NG61R1 (GJV3074311R1) is a power supply unit designed for PLC systems, providing stable internal voltages required for reliable operation. It features short-circuit protection, over-voltage protection, and a RUN-contact relay for monitoring the central unit’s status.

Key Features:

Product ID: GJV3074311R1
ABB Type Designation: 07 NG 61 R1
Application: Power supply for PLC systems
LED Indicator: Green LED signals active operation
Short-Circuit Protection: Yes
Overvoltage Protection: Yes
RUN-Contact Relay: Monitors the PLC’s RUN state

Electrical Specifications:

Input Voltage:

Selectable: 110V AC (+20%, -22%) or 220V AC (+20%, -22%)
Frequency Range: 47 Hz to 63 Hz

Output Voltages (Internal System Supply):

UB1: 5V DC (-1% to +5%)
UB4: 24V DC (0% to +30%)

Load Capacity:

5V DC Output (UB1): Max 4.0 A
24V DC Output (UB4): Max 1.5 A

Electrical Isolation:

Complete isolation between input and output voltages
Isolation between different output voltages

Rated Insulation Voltage:

250V AC (according to VDE 0160)
Test voltage: 1500V AC

Power & Efficiency:

Max Power Consumption: 150 VA
Max Power Dissipation: 22.4 W
Backup Time During Power Interruption: ≥ 20 ms

Relay & Switching Specifications:

Switching Voltage Range: 4.5V to 264V AC/DC
Switching Current:
- Max: 2A
- Min: 1mA at 5V DC
Switching Power:
- AC Load: Max 0.5 kVA
- DC Load: Max 50W
Contact Lifetime:
- ≥ 20,000 cycles at max load
- ≥ 1,000,000 mechanical cycles
Bounce Time: ≤ 4 ms

Mechanical & Installation Details:

Slot Requirement: 1 NG slot
Compatible Subracks:
- BT: NG ZE I/O
- BE-Central: NG BV I/O
- BE-Remote: NG BV I/O
Wiring Cross-Section:
- L1, N: Max 1.5 mm²
- PE (Protective Ground): Max 2.5 mm²
Fuse Protection: 5A slow-blow fuse

Physical Attributes:

Weight: 1 kg

Ordering Information:

Order Number: 07 NG 61 R1
Order Code: GJV 30 743 11 R1

Description & Application:

The ABB 07NG61R1 is a high-reliability power supply unit for AC31 and legacy ABB PLC systems. It is designed for stable and efficient power delivery, ensuring optimal performance in industrial automation applications. Its built-in protections and RUN-state relay monitoring make it a critical component in PLC control setups.
