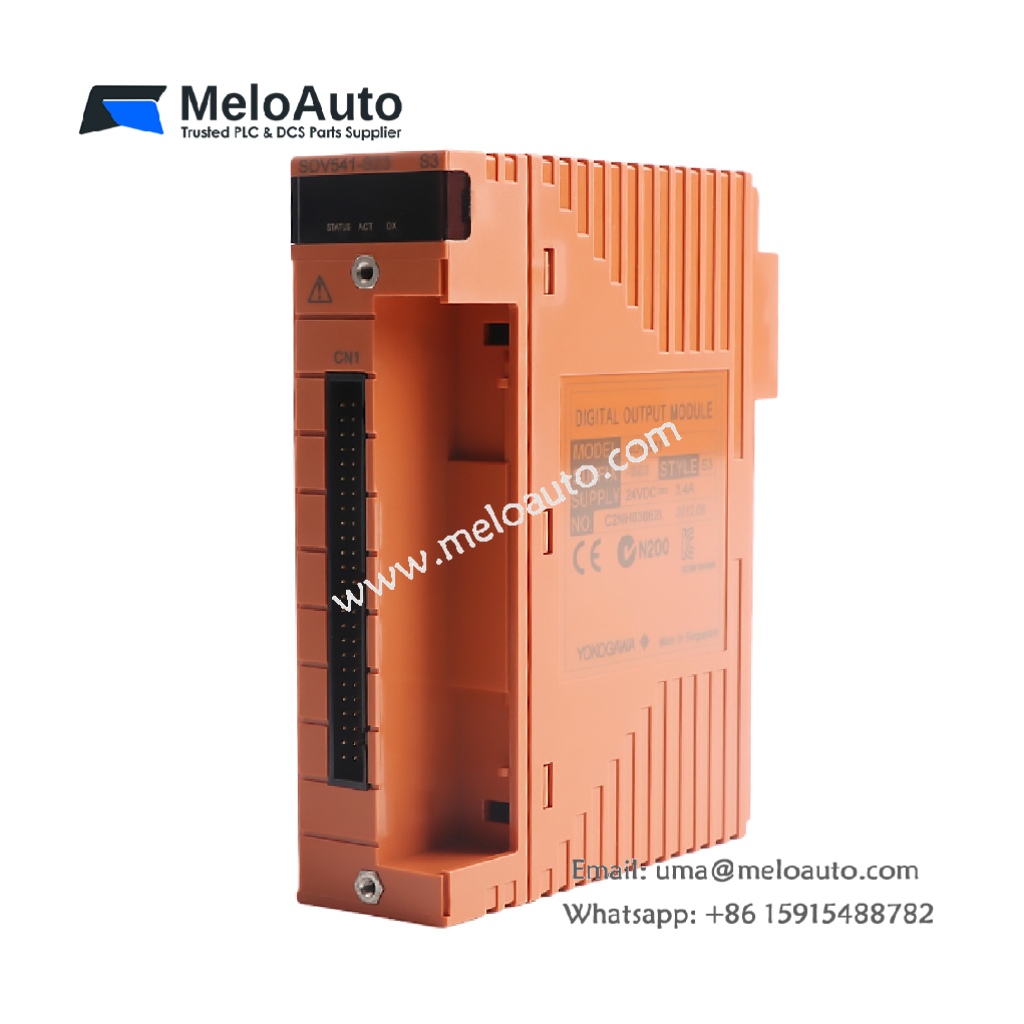

ABB SDV541-S23 S3 16-Channel Digital Output Module

The ABB SDV541-S23 S3 is a high-performance 16-channel digital output module designed for industrial automation applications. It delivers reliable signal transmission with robust isolation and is compatible with various terminal connections, including pressure clamp terminals, MIL cables, and dedicated signal cable interfaces.

Key Features

• Model: SDV541
• Type: 16-channel digital output module with module isolation
• Output Format: Current source
• Output Voltage: 24 V DC
• Voltage Drop: Max. 1 V
• Response Time: Max. 30 ms
• External Power Supply: 24 V DC +20% / -10% (Style S3), 3.4 A minimum
• Current Capacity: Max. 0.2 A per output line, 3.2 A total
• Leak Current (OFF status): Max. 1.6 mA
• Load Resistance Range: 120 to 685 Ω
• Minimum Load Current: 35 mA

Electrical Specifications

• Withstand Voltage:
  • 2 kV AC for 1 minute (between output lines and system)
  • 500 V AC when connected via AKB331 signal cable
• Power Consumption:
  • 300 mA max at 5 V DC
  • 150 mA max at 24 V DC

Style Code: S23

• S – Standard type
• 2 – For pressure clamp terminal block or MIL cable (no explosion protection)
• 3 – Includes signal cable interface adapter (no explosion protection)

External Connection Options

• Pressure clamp terminal
• MIL cable
• Dedicated signal cable (AKB331, AKB651)

Physical Attributes

• Weight:
  • Approx. 0.29 kg (terminal block or MIL cable)
  • Approx. 0.31 kg (with signal cable interface adapter)

Notes

• Ensure not to exceed current ratings including inrush current.
• Floating the field power supply is recommended for better noise immunity.
• Refer to “ProSafe-RS Outline of I/O Modules (for FIO)” for details on usage limitations.
