ABB TPS G4AI 1KHL015623R0001 Analog Input Control Module

Overview

The ABB TPS G4AI 1KHL015623R0001 is a control card designed for precise analog input signal handling in ABB G4AI inverter systems. It offers robust performance, diagnostic indicators, and safe signal processing suitable for demanding industrial applications.

Key Features

• Part Number: 1KHL015623R0001
• Type: Analog Input Control Module
• Brand: ABB
• Country of Origin: Sweden
• Power Supply: 24 VDC
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -40°C to 85°C
• Humidity: 5–95% RH, non-condensing
• Compliance: CE-certified

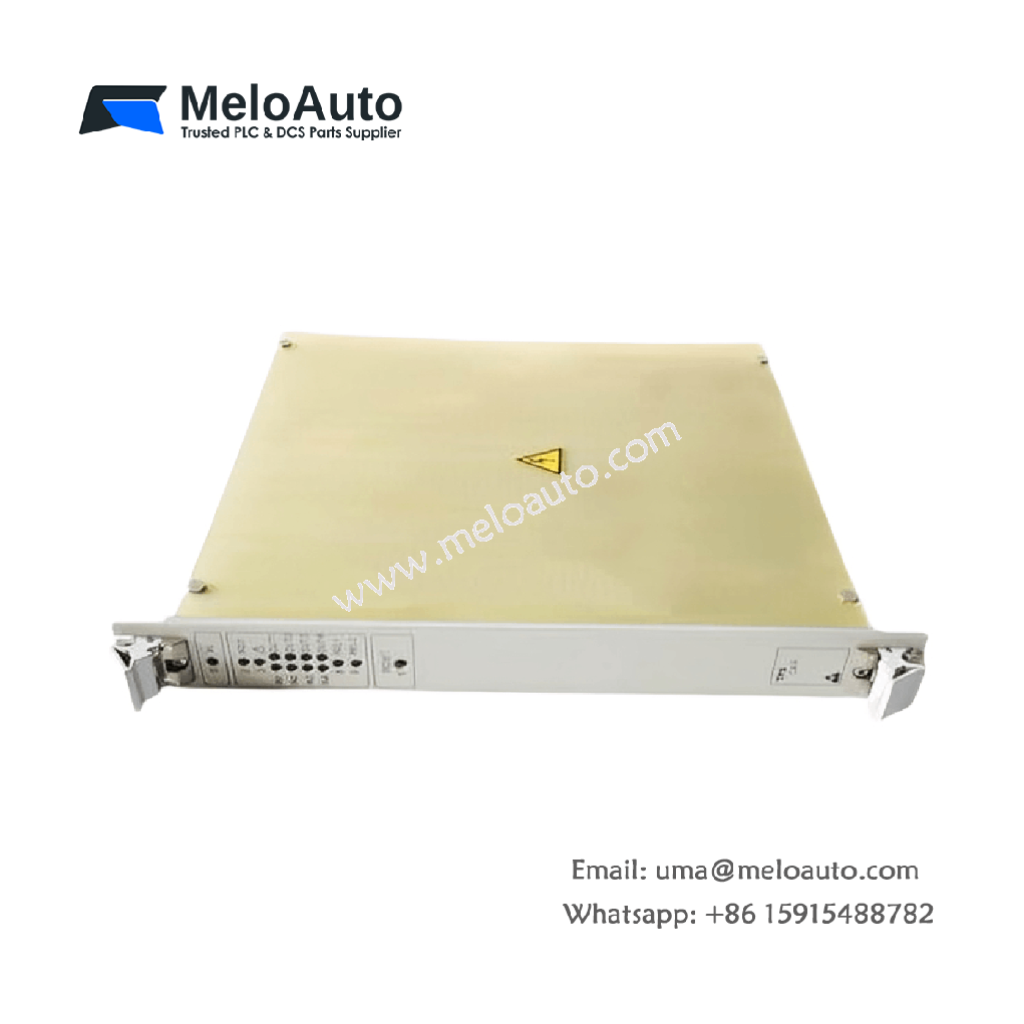

Front Panel Indicators (as shown in image)

• AL (0) – Alarm indicator
• RDY (2) – Ready status
• △ (3) – Warning or fault symbol
• IN1 to IN4 – Input signal status (4 channels)
• OUT1 to OUT4 – Output status (4 channels)
• REL1 & REL2 – Relay output activity indicators
• RESET (12) – Manual reset button

Applications

• Integration with ABB G4AI drive systems
• Industrial automation control
• Monitoring analog signal status
• Motor and equipment condition monitoring
• Safety-critical signal routing and diagnostics
