Allen-Bradley 1336-BDB-SP5D 74103-244-55 Drive Board

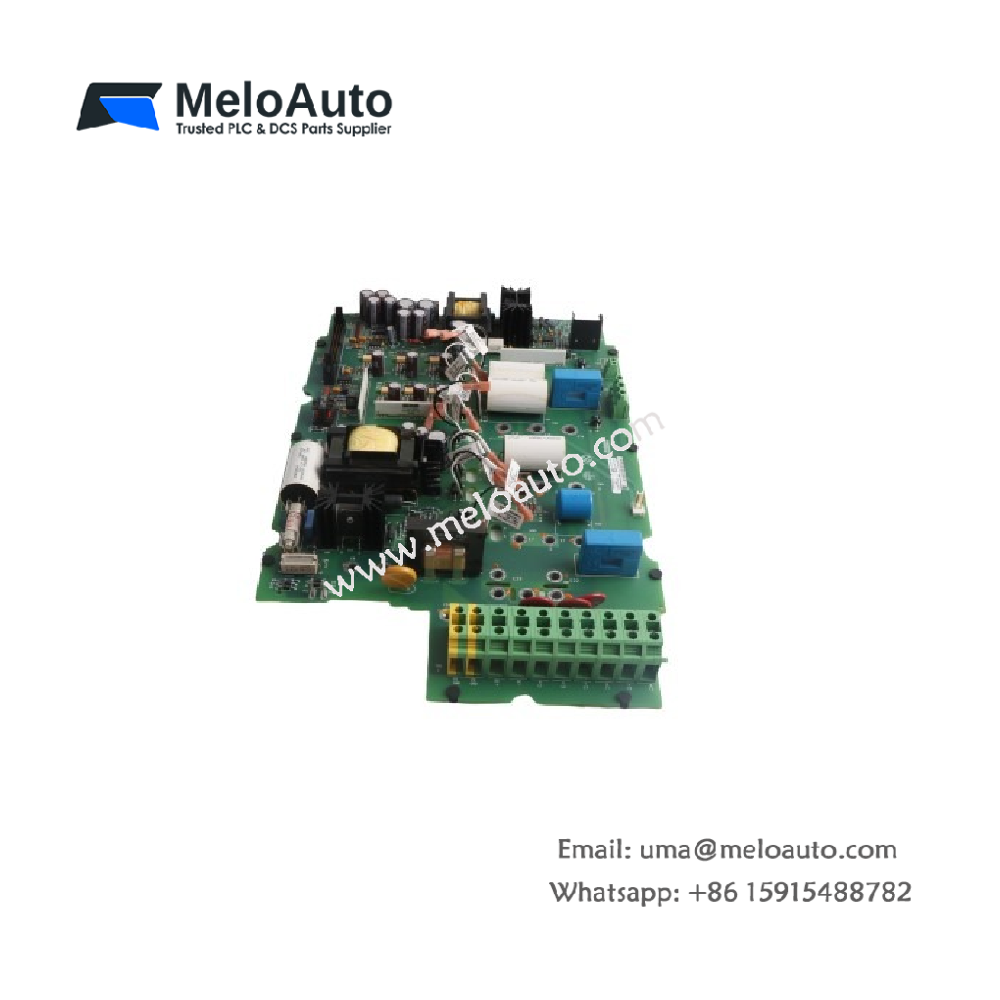

The Allen-Bradley 1336-BDB-SP5D Drive Board is part of the PCB Gate Drive Board Series, designed for excellent reliability and high compatibility with various AC frequency drives. This drive board serves as a spare part for multiple models, including the 1336 PLUS, REGEN, FORCE, PLUS II, and IMPACT AC drive series.

Key Features:

Part Number: 1336-BDB-SP5D
Brand: Allen-Bradley
Manufacturer: Rockwell Automation
Function: Acts as a Gate Drive Board for AC frequency drives
Frame Model Sizes: A, B, C, D, E (ensures easy connection to compatible drives)
Voltage Rating: 460V AC
Horsepower Rating: 25 HP
Alternate Part Number: 74103-244-55
Shipping Weight: Under 2 kilograms
Product Lifecycle Status: Discontinued/Obsolete

Design & Construction:

The 1336-BDB-SP5D features a green rectangular plate design, optimized for industrial environments. Key design elements include:

Port Layout: The board arranges ports, buttons, and control handles on one side, simplifying access.
Central Frame Space: The board’s central area remains open for easy installation and operation.
Compact and Portable: The lightweight design makes the board easy to move and install in different industrial settings.
Compatible Frame Sizes: The A-E frame model sizes ensure the board connects smoothly with various compatible drives.

Electrical and Performance Characteristics:

Voltage Capacity: This board operates at 460V AC, handling high-voltage applications in industrial settings.
Horsepower Rating: The 25 HP rating ensures this board supports demanding drive applications.
No Independent Power Supply: The board derives power from the connected frequency drive, meaning the drive must provide power for proper operation.
Built-In Protection: Protective features prevent electric shock during operation, ensuring user safety.

Compatibility and Use:

The 1336-BDB-SP5D drive board is designed as a replacement for the following Allen-Bradley AC drive models:

1336 PLUS
REGEN
FORCE
PLUS II
IMPACT
