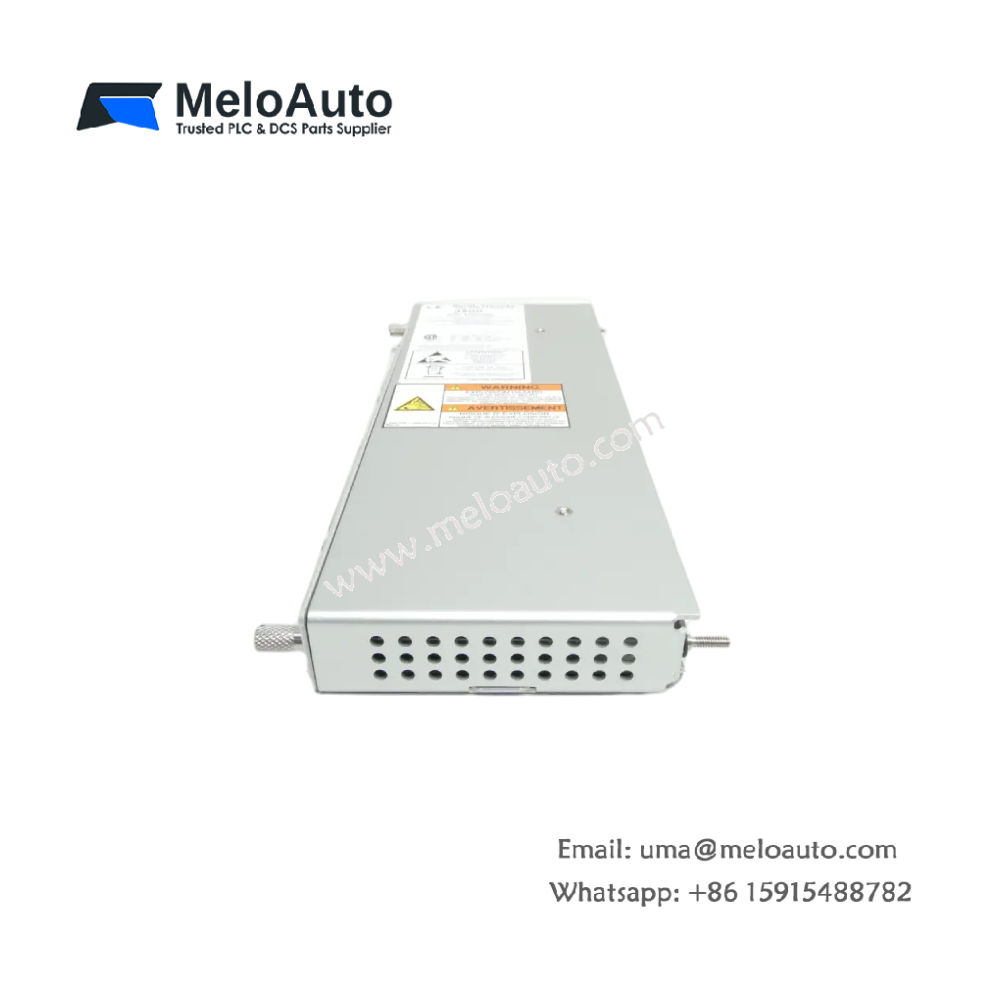

Bently Nevada 172109-01 3500/65 RTD/Isolated Tip TC I/O Module

The Bently Nevada 172109-01 is an RTD/Isolated Tip TC I/O Module designed for use with the 3500/65 16-Channel Temperature Monitor. It provides external terminations for up to 16 temperature inputs, allowing for flexible installation and connection of RTDs and thermocouples.

Key Specifications

• Inputs:
  Accepts 1 to 16 RTD or isolated tip TC transducer signals.
• Input Impedance:
  Greater than 1 MΩ for each lead input.
• Power Consumption:
  3 watts nominal.
• Transducer Compatibility:
  Thermocouples (TC):
  • Type E: -100 °C to +1000 °C
  • Type J: 0 °C to +760 °C
  • Type K: 0 °C to +1370 °C
  • Type T: -160 °C to +400 °C
    RTDs:
  • 100 Ω 3-wire and 4-wire platinum RTD (α = 0.00385): -200 °C to +850 °C
  • 100 Ω 3-wire and 4-wire platinum RTD (α = 0.00392): -200 °C to +700 °C
  • 120 Ω 3-wire and 4-wire nickel RTD: -80 °C to +260 °C
  • 10 Ω 3-wire and 4-wire copper RTD: -100 °C to +260 °C
• Note: Platinum RTDs with α = 0.00385 are recommended for all applications.

---

Important Considerations

• When replacing an older I/O module (172109-01 Rev D, 172103-01 Rev F, 172115-01 Rev E, or future revisions), it is necessary to upgrade the monitor’s firmware to the latest released version.
• Failure to upgrade the firmware before replacing the I/O module will result in an I/O Module Mismatch and 562 ADC Failure in the System Event List.

---
