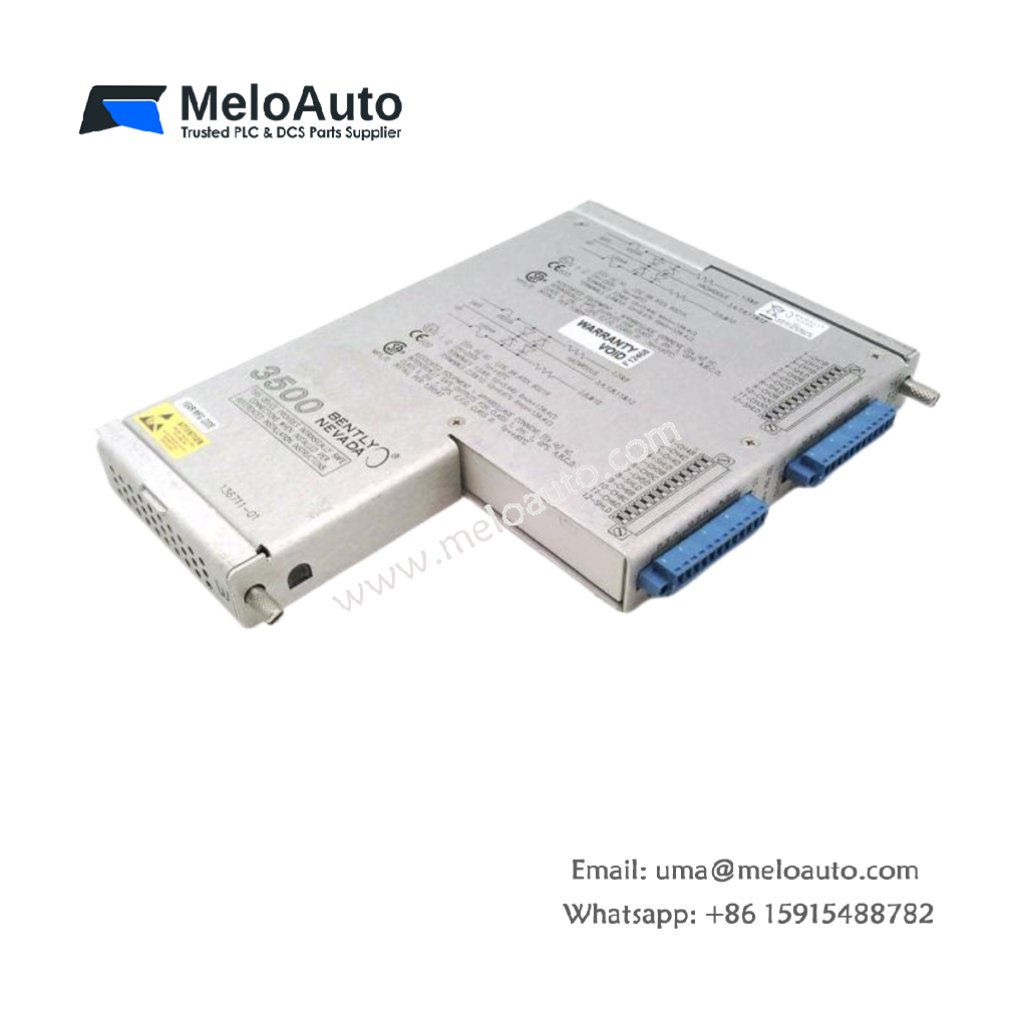

Bently Nevada 3500 Series 136711-01 I/O Module with Internal Barriers

Advanced Temperature Monitoring I/O Module

The 136711-01 I/O module from Bently Nevada is designed for precise temperature input in vibration monitoring systems. It belongs to the trusted 3500 Series and integrates seamlessly with RTDs and thermocouples (TCs). This module includes internal barriers and internal terminations, making it ideal for hazardous environments.

Reliable Performance and Compatibility

It accepts up to six input signals from RTDs or TCs. Its isolated input design ensures signal integrity and safety. The module supports both 3-wire and 4-wire RTDs with industry-standard accuracy. It is made in the U.S.A., ensuring high-quality construction and reliability.

Long-Term Support and Availability

The 136711-01 is available brand new with a 12-month warranty. It supports optional Certificate of Origin (COO) upon request. Lead time is estimated at 10–12 weeks.

Technical Specifications

• Product Series: Bently Nevada 3500
• Model: 136711-01
• Product Type: I/O Module with Internal Barriers and Terminations
• Condition: Brand New
• Warranty: 12 months
• Country of Origin: U.S.A.
• Certificate of Origin: Available upon request
• Dimensions: 35 cm × 3 cm × 10 cm
• Net Weight: 0.46 kg
• Shipping Weight: 2.0 kg
• Power Consumption:
  • 3500/60: 7 watts
  • 3500/61: 9 watts
• Input Capacity: 1 to 6 RTD or TC signals
• Input Impedance: >10 MΩ per lead
• Isolation: 250 Vdc between TC channels

Supported Temperature Sensors

Thermocouples (TC):

• Type E: –100°C to +1000°C
• Type J: 0°C to +760°C
• Type K: 0°C to +1370°C
• Type T: –160°C to +400°C

RTDs:

• 100Ω Pt (α=0.00385): –200°C to +850°C (–50°C to +850°C with barriers)
• 100Ω Pt (α=0.00392): –200°C to +700°C (–50°C to +850°C with barriers)
• 120Ω Ni: –80°C to +260°C
• 10Ω Cu: –100°C to +260°C (–50°C to +850°C with barriers)
