Emerson DeltaV KJ3204X1-BK1 Digital Output Card

Product Overview

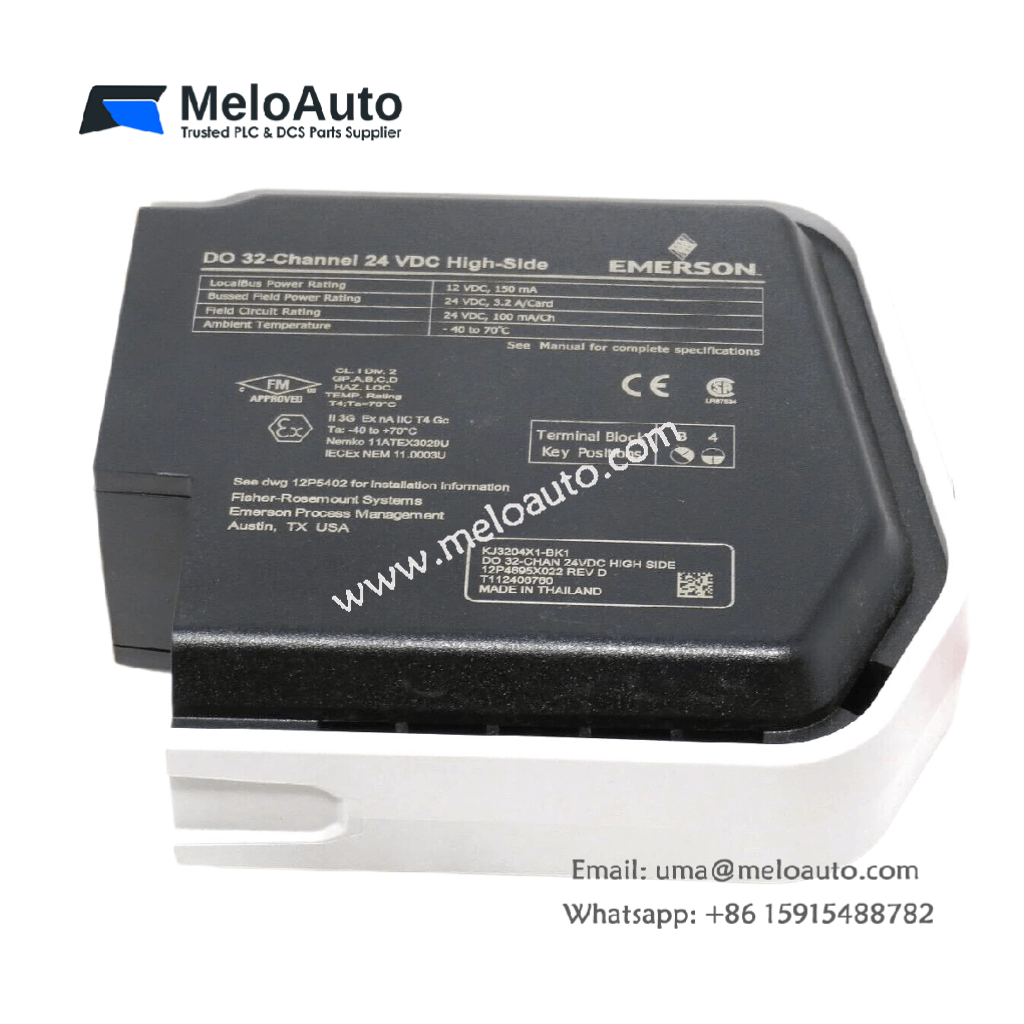

The Emerson DeltaV KJ3204X1-BK1 is a 32-channel high-side digital output (DO) card designed for the DeltaV S-Series system. Engineered for industrial control applications, this card provides reliable 24 VDC high-side switching for digital output signals.

Key Features

Type: S-Series Digital Output (DO) Card
Channels: 32 Outputs
Voltage Rating: 24 VDC High-Side
High Density: Supports efficient and space-saving installations
Compatibility: Designed for use in Emerson DeltaV systems

Power Specifications

Local Bus Power: 12 VDC at 150 mA
Bussed Field Power: 24 VDC at 3.2 A per card
Field Circuit Power: 24 VDC at 100 mA per channel

Environmental Specifications

Operating Temperature: –40°C to +70°C
Shock Resistance: 10g, ½ sinewave for 11 milliseconds
Vibration:
- 1 mm peak-to-peak from 2 to 13.2 Hz
- 0.7 g from 13.2 to 150 Hz
Airborne Contaminants Rating: ISA-S71.04 –1985, Class G3
Relative Humidity: 5% to 95%, non-condensing
Terminal Block Key Position: B4
