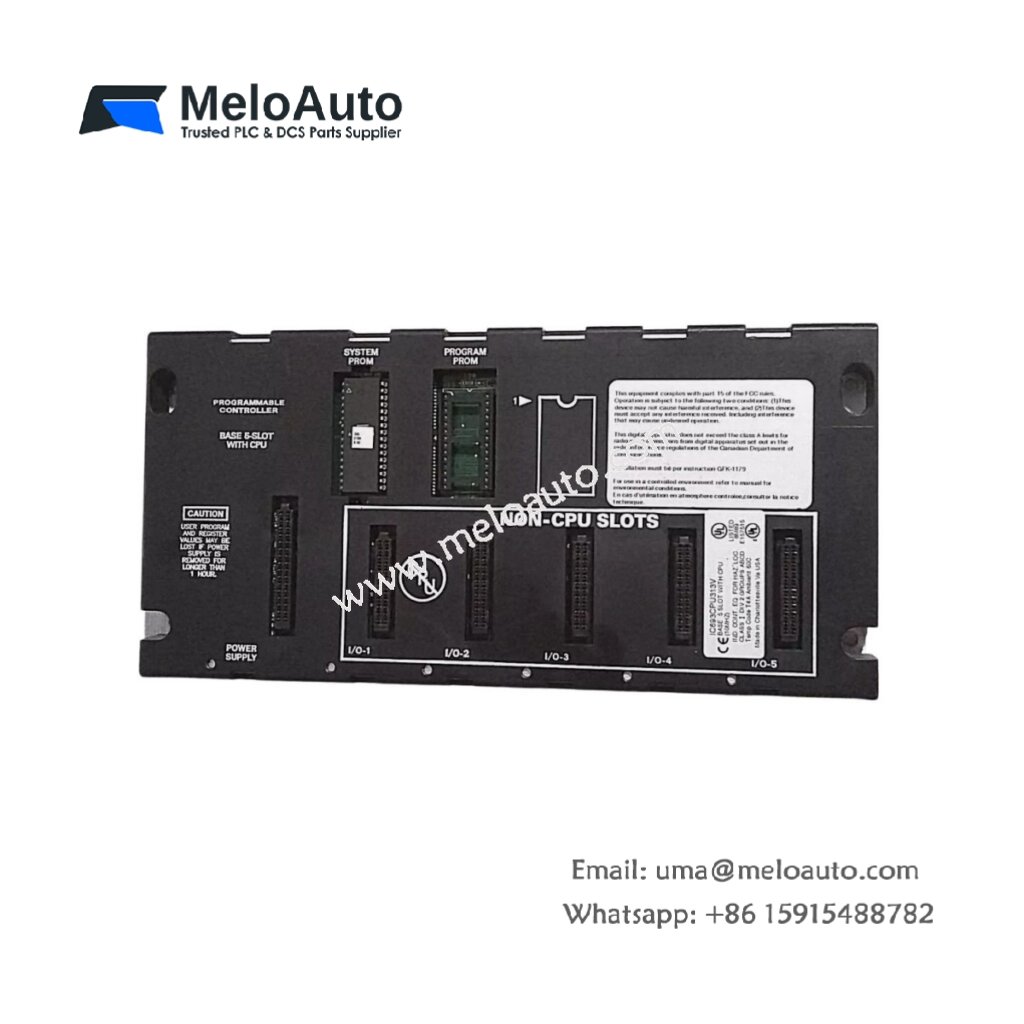

GE Fanuc Series 90-30 IC693CPU313 Embedded CPU Baseplate

Compact Baseplate with Integrated Turbo CPU

The IC693CPU313 is a Series 90-30 embedded CPU baseplate with a built-in Turbo CPU for efficient processing. It is ideal for small to mid-sized industrial automation applications.

Efficient Processing and Fast Scan Time

• Processor Type: 80188 Turbo CPU

• Processor Speed: 10 MHz

• User Memory: 12 KB

• Typical Scan Rate: 0.6 ms per 1K of Boolean logic

Integrated I/O and Expansion Capabilities

• Total Slots: 5 (including CPU and I/O slots)

• I/O Slots: 5 maximum

• Power Supply Slots: 1

• Expansion Baseplate Slot: None

Reliable Digital and Analog I/O Support

• Discrete Inputs (%I): Up to 160 points (combined inputs and outputs)

• Discrete Outputs (%Q): Up to 320 points (combined inputs and outputs)

• Analog Inputs (%AI): 64 words

• Analog Outputs (%AQ): 32 words

Built-in Communication Port

• Serial Ports: 1

• Communication Protocols: Supports SNP slave and SNP-X slave

• Connection: Uses connector on PLC power supply

Power and Environmental Specifications

• Bus Voltage: +5VDC

• Current Load: 410mA

• Operating Temperature: 32°F to 140°F (0°C to 60°C)

Discontinued but Still Reliable

The IC693CPU313 is discontinued/obsolete, but it remains a robust choice for legacy automation systems requiring stable performance and integrated control.
