HIMA F 7130A (F7130A) Power Supply Module

General Description

The HIMA F 7130A is a power supply module designed specifically for the PES H41q safety system. It converts a 24 VDC input into an isolated 5 VDC output to supply power to the central processing unit (CPU), I/O modules, and the HIBUS interface.

The module features galvanic isolation, overvoltage protection, current limiting, and short-circuit-proof outputs for enhanced system safety and reliability. Independent supply paths ensure the central device and HIBUS interface receive stable and isolated power.

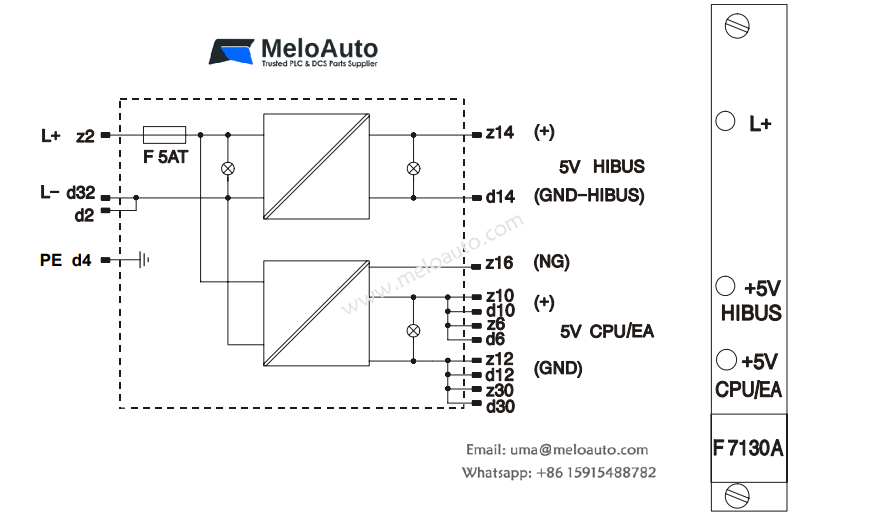

HIMA F 7130A (F7130A) Power Supply Module

Key Features

DC/DC converter with electrical isolation between input and output
Supplies 5 VDC power to PES H41q system
Dual-output design for CPU/I/O and HIBUS interface
LED status indicators for input and output voltages
Overvoltage and current protection
Short-circuit-proof outputs
Separate monitoring supply via pin z16 (NG)

Technical Specifications

Parameter	Specification
Model	F 7130A
Input Voltage	24 VDC ±15–20%, pp < 15%
Primary Fuse	5 A gL
Output Voltage (CPU/I/O)	5 VDC ±0.25 V / 10 A
Output Voltage (HIBUS)	5 VDC ±0.25 V / 1 A
Efficiency	≥ 70%
Output Protection	Overvoltage and current limiting, short-circuit proof
LED Indicators	Input voltage (L+), Output voltage (5V CPU/EA)
Monitoring Power Supply Input	Via pin z16 (NG)
Mounting Width	4 SU (Standard Units)
Compatible System	HIMA PES H41q
