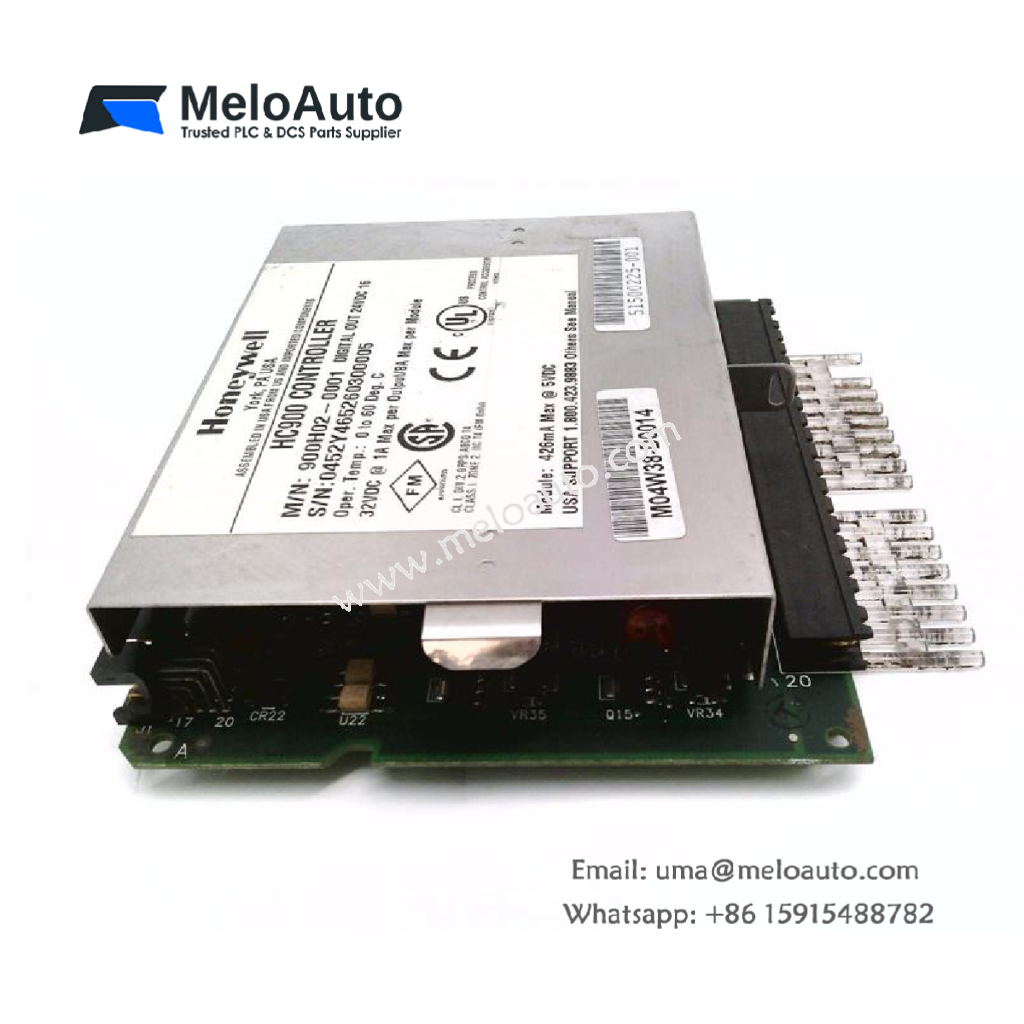

Honeywell 900H02-0001 | DC Digital Output Module

Manufacturer: Honeywell
Series: ControlEdge HC900 I/O modules
Module Number: 900H02-0001
Condition: Brand NEW & in Stock
Product Type: DC Digital Output Module
Country of Origin: USA
Payment: T/T, Western Union
Price: USD 199
Dimension: 137mm H x 35.6mm W 5.4” H* x 1.4” W
Weight: 230g
Warranty: 12 months

  • Product Details
  • Technical Documentation

Overview

The Honeywell 900H02-0001 DC Digital Output Module provides 16 current-sinking outputs, divided into two isolated groups of eight channels. Each group is externally powered and includes dedicated screw terminals for +V and COM connections. The module is designed for industrial automation applications, offering overload protectiongalvanic isolation, and LED indicators for real-time status monitoring.

Key Features

  • 16 Digital Outputs: Low-side (current sinking) switching configuration.

  • Two Isolated Groups: Each group contains 8 channels, powered externally.

  • Overload Protection: Built-in electronic high-current and high-temperature limiting. Requires power cycling to reset.

  • LED Indicators:

    • Green LED: Indicates when an output is ON.

    • Blinking Green LED: Module is being scanned.

    • Blinking Amber LED: Channels are forced.

    • Red LED: Indicates module diagnostics or faults.

Electrical Specifications

  • Operating Voltage6.5 to 32 VDC (5.0 to 6.5 V @ <0.5A per channel)

  • Output TypeIntelligent Power Switch (IPS)

  • Peak Voltage34 VDC

  • ON Voltage Drop0.3 VDC @ 1A load

  • Maximum Load Current:

    • 1A per point, 8A max per module (resistive load)

    • 0.5A per point for incandescent lamp loads (5 mH max)

  • Maximum Inrush Current4A for 10ms

  • Minimum Load0.0 mA

  • OFF to ON Response Time6ms

  • ON to OFF Response Time6ms

  • Galvanic IsolationTwo groups of 8 outputs

  • Maximum Leakage Current0.15mA @ 32VDC

  • Fuses: Electronic limiting

Power Requirements

  • 5V Supply340mA

  • 24V Supply0mA

Applications

  • Industrial Automation Systems

  • Process Control Systems

  • Factory Equipment and Machine Control
