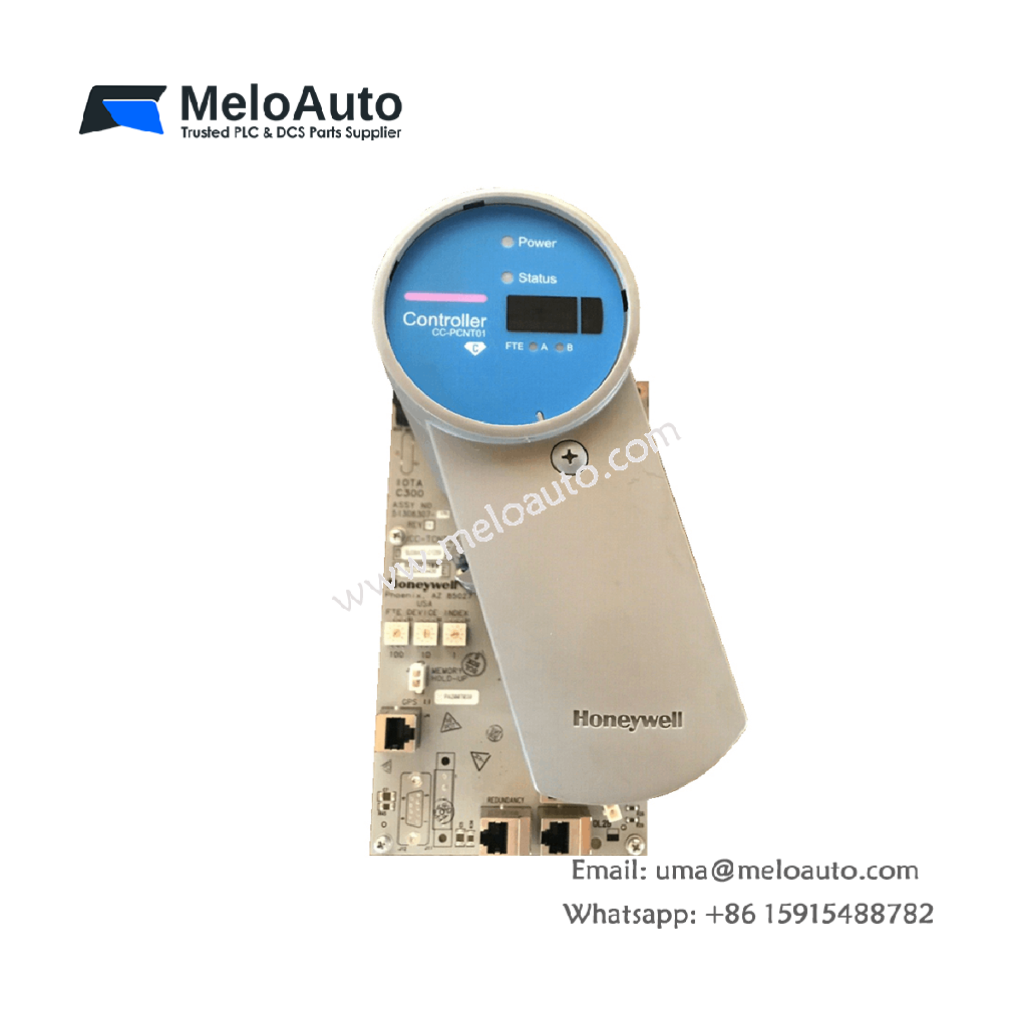

Honeywell CC-PCNT01 – C300 Controller Module

Overview

The Honeywell CC-PCNT01 C300 Controller is a high-performance process controller built for the Experion system. It uses the modular Series C form factor, which includes a plug-in electronics module and a dedicated Input Output Termination Assembly (IOTA). Designed for robust, scalable control, it supports both non-redundant and fully redundant configurations.

Key Features

Distributed process control and I/O gateway
Modular design with Series C IOTA connection
Built-in support for redundancy with simple add-on
Plug-and-play electronics module for easy replacement
Conformally coated (CC) for enhanced environmental protection
Supports Experion PKS architecture

Functionality

The C300 Controller integrates all required control and communication functions. When redundancy is needed, adding a second identical controller with redundancy cables forms a fault-tolerant pair. This enables continuous operation even during module failure.

Redundant Architecture

Redundancy Mode: Optional
Redundant Pairing: Achieved by adding a second controller and a cable
Typical Use Case: Full system availability in critical applications

Hardware Construction

Controller Mount: Directly onto IOTA base
Enclosure: Durable plastic housing with visible status indicators and an integrated display
Conformal Coating: Printed wiring boards protected against environmental exposure (CC model)
