Lenel LNL-X2220 Intelligent Dual Reader Controller

Overview

Advanced Access Control with LNL-X2220

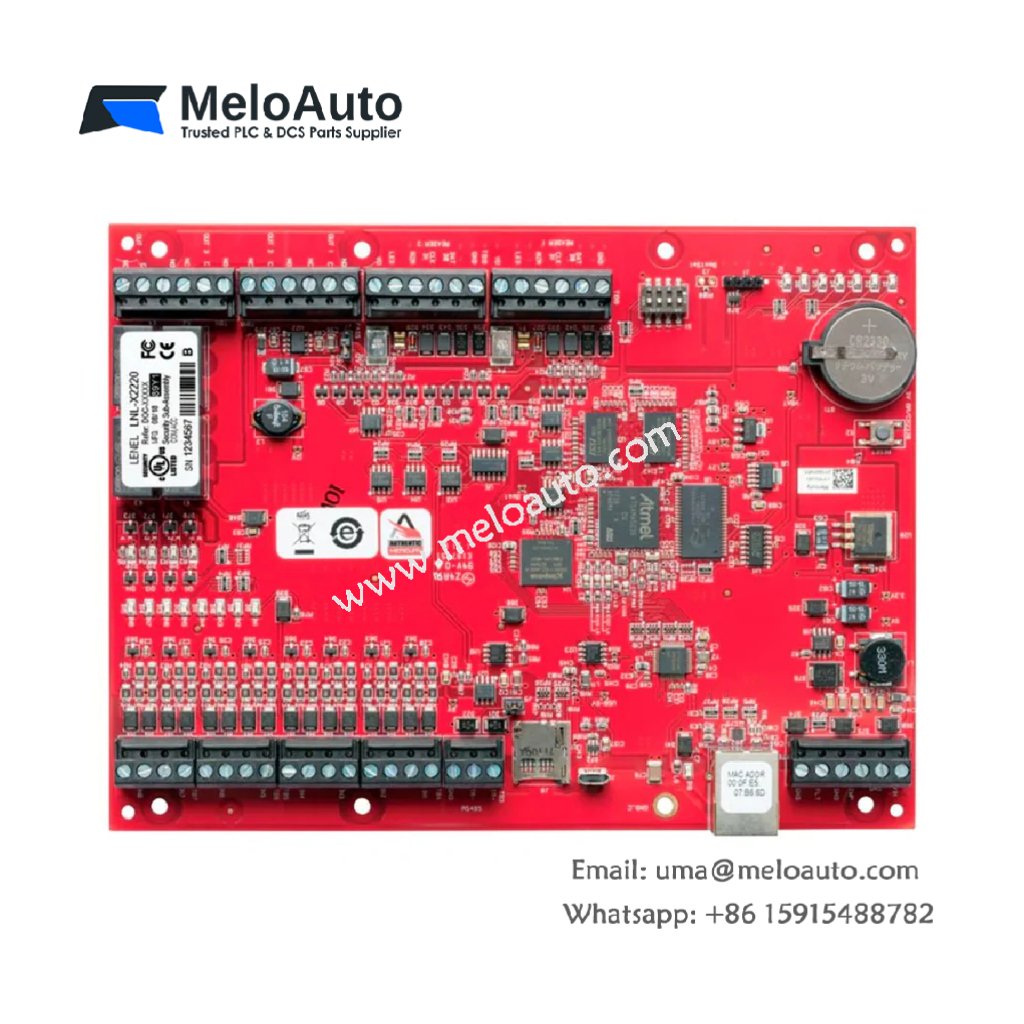

The LNL-X2220 Intelligent Dual Reader Controller (IDRC) delivers powerful, flexible access control. It supports one or two doors and can connect directly to the OnGuard® system via Ethernet. Its modular design allows expansion with downstream I/O and reader interface modules.

Direct-to-Network Architecture

With the LNL-X2220, connect entry points directly to the OnGuard server over Ethernet. This setup keeps all the core security features of Lenel’s proven hardware while simplifying system architecture.

Uninterrupted Local Operation

Even during network outages, the LNL-X2220 ensures uninterrupted local functionality. It stores events and cardholder data locally, allowing smooth operation until the server connection is restored.

Lenel LNL-X2220 Technical Specifications

Memory and Event Storage

• 6 MB flash memory stores cardholder data
• Battery-backed RAM logs up to 50,000 events

Host Communication Options

• Primary: Ethernet 10/100 Mbps
• Secondary: USB 2.0 via optional USB2-OTGE100 converter

Power Supply Requirements

• Input: 12 to 24 VDC ±10%
• Controller: 500 mA max (excluding readers)
• Reader Ports: Add 600 mA max

Lenel LNL-X2220 I/O and Reader Interface

Input and Output Capabilities

• 8 inputs (supervised or unsupervised)
• 2 inputs reserved for tamper and UPS monitoring
• 4 relay outputs (NO: 5 A, NC: 3 A @ 30 VDC)

Reader Support

• Power: 12 VDC regulated, 300 mA max per reader
• Supports TTL or RS-485 data formats
• RS-485: Up to 2,000 ft cable length
• LED and buzzer control outputs included

Lenel LNL-X2220 Cabling Guidelines

Recommended Cabling

• Power/Relays: 18 to 16 AWG twisted pair
• Ethernet: Minimum CAT-5
• Readers: 22 to 16 AWG
• Alarm Inputs: 22 AWG at 1,000 ft max
• RS-485 Devices: Shielded twisted pair, 120-ohm, up to 4,000 ft
• RS-485 Readers: Shielded twisted pair, 120-ohm, up to 2,000 ft

Lenel LNL-X2220 Physical and Environmental Specs

Mechanical Design

• Dimensions: 8.0 x 6.0 x 1.0 in
• Weight: 9 oz (255 g), board only

Environmental Ratings

• Operating Temp: 0°C to +70°C
• Storage Temp: -55°C to +85°C
• Humidity: 5 to 95%, non-condensing
• Heat Output: 20.5 BTU/hr @12 VDC, 22.9 BTU/hr @24 VDC

Lenel LNL-X2220 Certifications

• Complies with FCC Part 15
• Certified by CE, RoHS, UL 294, UL 2610
