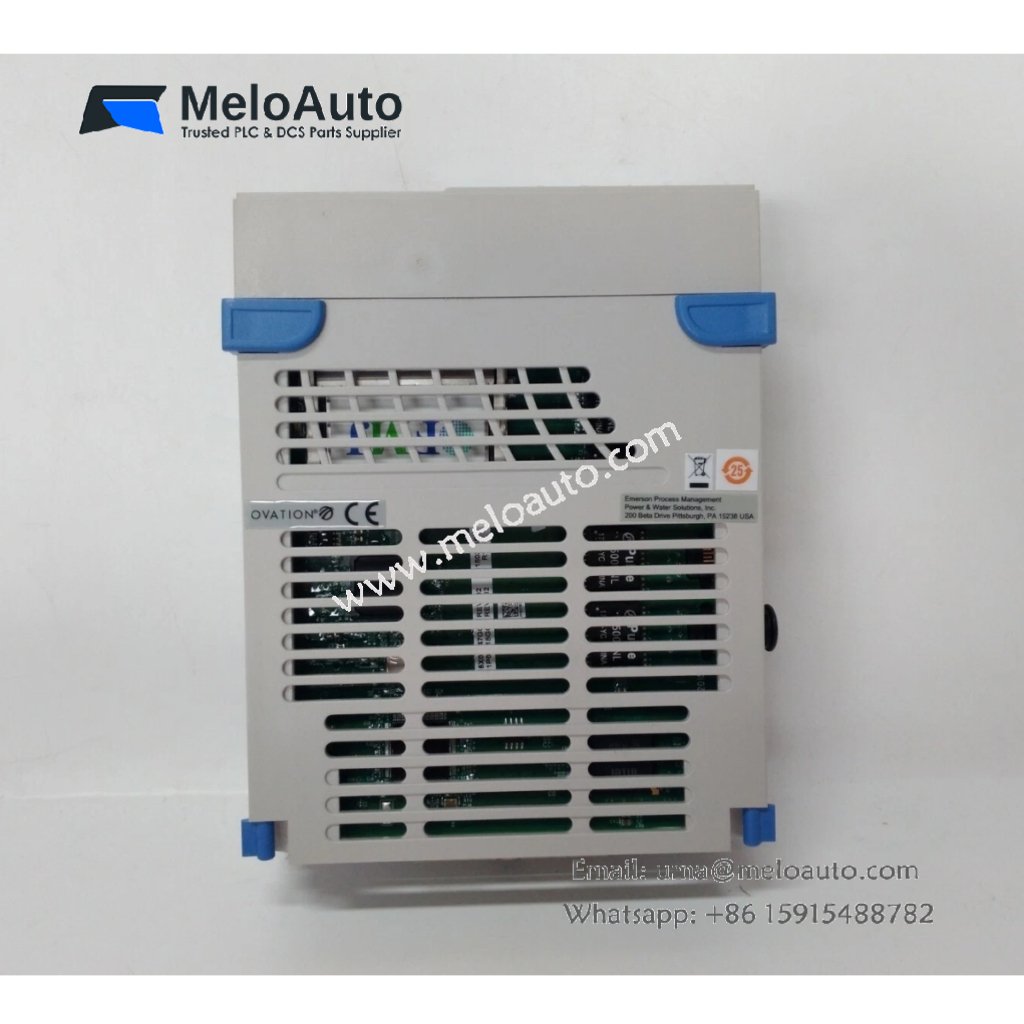

Ovation Controller Model OCR1100 5X00481G04

Overview
The OCR1100 5X00481G04 is a high-performance embedded device designed for industrial applications. It supports a range of process control tasks, providing scalable control solutions with up to 32,000 points. The device offers flexible loop execution rates and is equipped with robust connectivity options.

Key Features

Bus Structure:
CompactPCI standard for reliable system integration.

Points Capability:
Supports up to 32,000 originated points, ideal for large-scale applications.

Process Control Tasks:
Handles up to 5 tasks with individual loop execution rates.

Two predefined tasks: 1 second and 100 ms.
Three user-defined tasks, with a configurable execution rate from 10 ms to 30 seconds in 10 ms increments.

Processor and Memory:

Processor: 1.1 GHz base frequency for high-speed processing.
Memory: 1 GB Flash and 256 MB RAM for reliable data storage.

Connectivity Options:

Ethernet Ports: 4 x 10/100 Mb Ethernet ports.
Two options for NIC ports:
(i) 4 x RJ45
(ii) 1 x RJ45 + 3 x SFP Fiber for flexible network integration.

Temperature and Humidity Range:

Ambient Temperature: 0-60°C (32-140°F) with RJ45 ports.
0-50°C (32-122°F) with RJ45 + SFP Fiber option.
Humidity: 0 – 95% RH for reliable operation in varying conditions.

Power:

24 VDC, 40W for low-power consumption and efficient performance.

Size:

Dimensions: 20” W x 8” H x 7” D, compact for easy installation.

Certifications:

CE Mark Certified: Meets CE Mark requirements when installed in a CE-certified cabinet.
Achilles Level 1 Certification: Ensures high security and network reliability.
