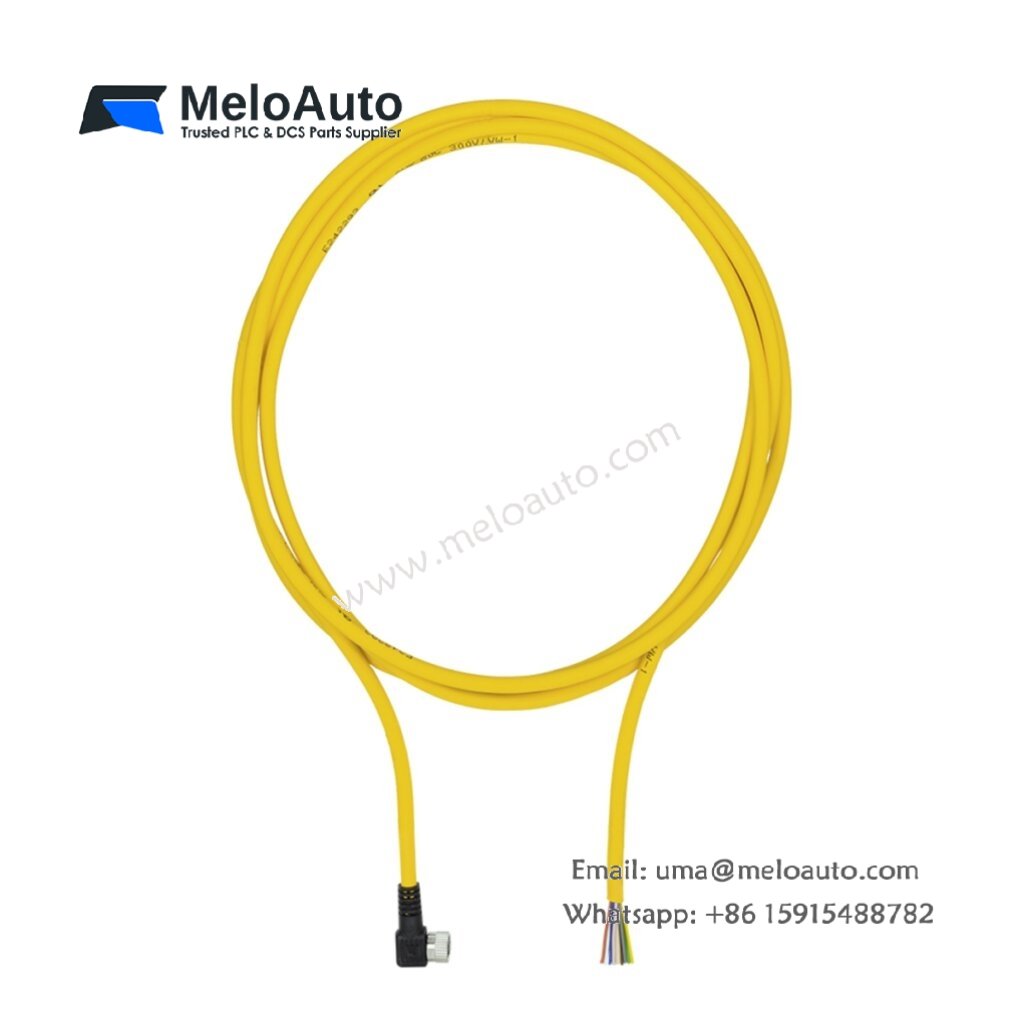

Pilz 533110 PSEN Kabel Winkel 2m - Cable Angle Plug

The Pilz PSEN Kabel Winkel 2m is a robust 4-pin cable with an angled M8 female connector. Designed for industrial automation, it features a PUR outer sheath in yellow RAL1003, making it highly visible. The cable is perfect for use in drag chains, offering flexibility and durability.

Efficient Electrical Performance

This cable supports a rated current of 4 A, with a conductor resistance of 79 Ohm/km. It is built with high-quality materials, including gold-plated contacts and copper conductors, ensuring reliable conductivity and long-term durability.

Built for Harsh Environments

The Pilz PSEN Kabel Winkel 2m cable is suitable for challenging industrial environments. With a wide operating temperature range of -25°C to 80°C, it remains stable in extreme conditions. The cable also meets oil resistance and flame resistance standards, providing additional safety and longevity.

Key Features

Type: 4-pin angled M8 female connector
Length: 2 meters
Insulation Color: Yellow (RAL 1003)
Housing Material: PUR
Conductor Cross Section: 0.25 mm² (AWG 24)
Rated Current: 4 A
Conductor Resistance: 79 Ohm/km

Technical Specifications

Specification	Details
Rated Current	4 A
Conductor Resistance	79 Ohm/km
Conductor Capacity	64.6 pF/m
Ambient Temperature	-25°C to 80°C
Pollution Degree	3
Cable Material	PUR (Polyurethane)
Insulation Material	TPU / TPE-U / PUR
Cable Length	2 m
Bend Radius	5 x Ø
Max. Outer Diameter	4.7 mm
Number of Conductors	4
Cable Cross Section	0.25 mm² (AWG 24)
Approvals for Cable	UL AWM-Style 20233, UL/CSA
Approvals for Connector	UL 94 HB
Oil Resistance	Yes
Flame Resistance	UL VW1
Halogen-Free	Yes
Weight	60 g (Net), 67 g (Gross)
