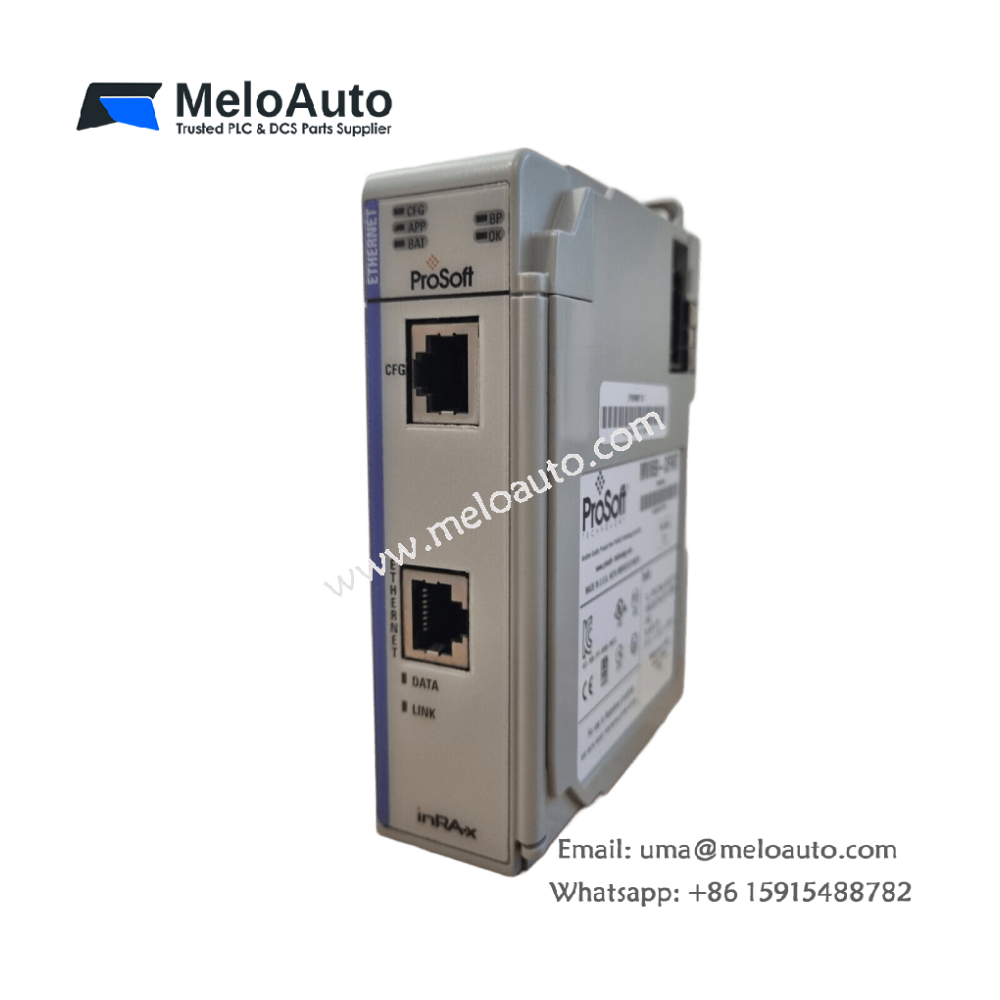

Prosoft MVI69-DFNT Single-slot Communication Module

The MVI69-DFNT is a compact, single-slot communication module designed for seamless integration of CompactLogix and MicroLogix 1500 processors with devices and hosts supporting the EtherNet/IP protocol (Explicit Messaging). This module facilitates efficient data exchange with programmable logic controllers (PLCs), programmable automation controllers (PACs), and host human-machine interface (HMI) systems over Ethernet. It supports both client and server modes, enabling robust communication capabilities for industrial applications.

Key Features and Benefits

EtherNet/IP Communication:
- Sends read/write commands to remote devices over EtherNet/IP networks.
- Hosts up to 20 servers, allowing the reception of commands from other network devices.
High Customizability:
- Supports up to 100 configurable commands.
- Provides a dedicated Ethernet port for applications that require a separate or isolated network.
Compact Design:
- Single-slot module, compatible with the 1769 backplane.
- Recognized as an Input/Output (I/O) module, enabling direct access to processor memory.
Processor Compatibility:
- Supports all CompactLogix processors, including L20, L30, L31, L32, L35, L43, and L45.
- Compatible with MicroLogix 1500 LRP.
- Integration with L43 and L45 processors requires RSLogix 5000 version 16.03 or later.
Streamlined Integration:
- Data transfer between processor and module is managed using ladder logic.
- Preconfigured sample ladder files and configuration text files simplify setup.
Enhanced Network Stability:
- Resilient to Ethernet broadcast storms with a tolerance of up to 5000 ARP frames-per-second for up to 5 minutes.

Technical Specifications

Hardware Features

Module Dimensions: Standard 1769 single-slot module.
Current Load: 800 mA max @ 5 VDC.
Power Supply Distance Rating: 2 slots on 1769 bus for L43 and L45 processors.
Operating Temperature: 32°F to 140°F (0°C to 60°C).
Storage Temperature: -40°F to 185°F (-40°C to 85°C).
Humidity Range: 5% to 95% relative humidity (non-condensing).

Ports and Connectivity

Configuration Port (CFG):
- RJ45 to DB-9M connection (cable supplied).
- RS-232 only, no hardware handshaking.
Application Port (Ethernet):
- 10/100 Base-T Ethernet-compatible interface.
- Electrically isolated to 1500 V rms.

LED Indicators:

Power and Module Status.
Application Status.
Configuration Port Activity.
Ethernet Port Activity.
Error Status.

Applications

The MVI69-DFNT module is ideal for industries requiring reliable communication between CompactLogix or MicroLogix processors and EtherNet/IP-compatible devices. It enables:

Integration with host systems such as HMIs and SCADA.
Coordination between PLCs and PACs on Ethernet networks.
Data exchange in environments needing dedicated network segments.

Shipped Accessories

Cables:
- RJ45-to-DB-9M cables for each port.
- 6-foot RS-232 configuration cable.

By leveraging its client/server functionality and compatibility with Rockwell Automation platforms, the MVI69-DFNT enhances system flexibility and operational efficiency, making it a robust solution for industrial communication needs.
