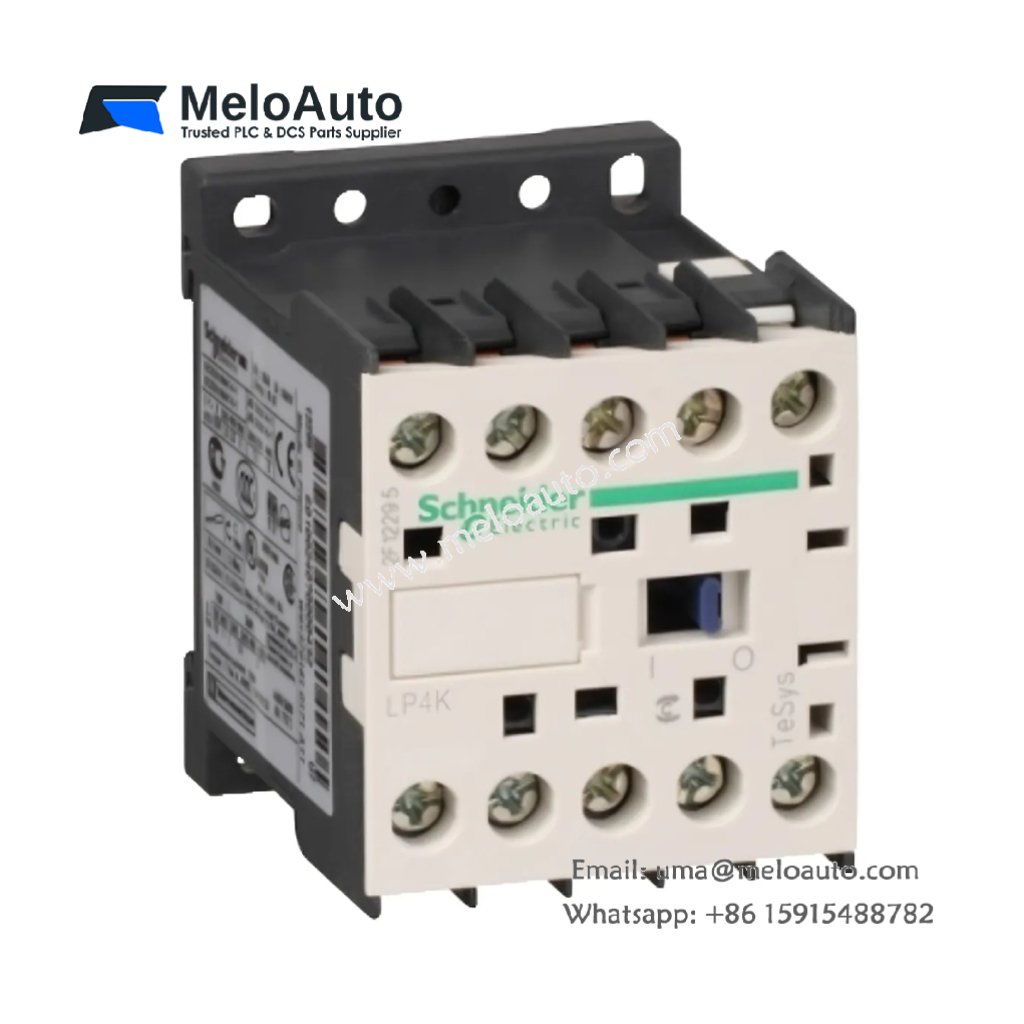

Schneider Electric TeSys K LP4K0601FW3 Contactor

Overview

The LP4K0601FW3 is a compact 3-pole contactor from Schneider Electric’s TeSys K series. It is ideal for motor control in AC-3 and AC-4 applications up to 6A and 440V.

Key Features

• Rated operational current: 6A at ≤ 440V AC
• Coil voltage: 110V DC with built-in diode suppressor
• 1 NC auxiliary contact
• Utilization category: AC-3 / AC-4
• Compact size with low power consumption (1.8 W)
• High mechanical durability: 30 million cycles

Motor Power Ratings (AC-3)

• 1.5 kW at 220–230V
• 2.2 kW at 380–415V
• 3.0 kW at 440–690V

Electrical Characteristics

• Insulation voltage: 690V
• Impulse withstand voltage: 8 kV
• Inrush current: 110A
• Conventional thermal current: 20A

Control & Protection

• Coil operational range: 0.7–1.3 Uc
• Drop-out voltage: 0.1–0.7 Uc
• Auxiliary contact minimum current: 5 mA
• Minimum switching voltage: 17 V
• Conforms to EN/IEC 60947 and UL 508

Mounting & Dimensions

• Mounting: DIN rail or plate
• Height: 58 mm
• Width: 45 mm
• Depth: 57 mm
• Net weight: 0.235 kg

Environmental Ratings

• Operating temperature: -25°C to +50°C
• Storage temperature: -50°C to +80°C
• Operating altitude: up to 2000 m
• Flame retardant to UL 94 V1

Certifications

• CE, UL, CCC, CSA, EAC, UKCA, CB Scheme
• RoHS compliant
