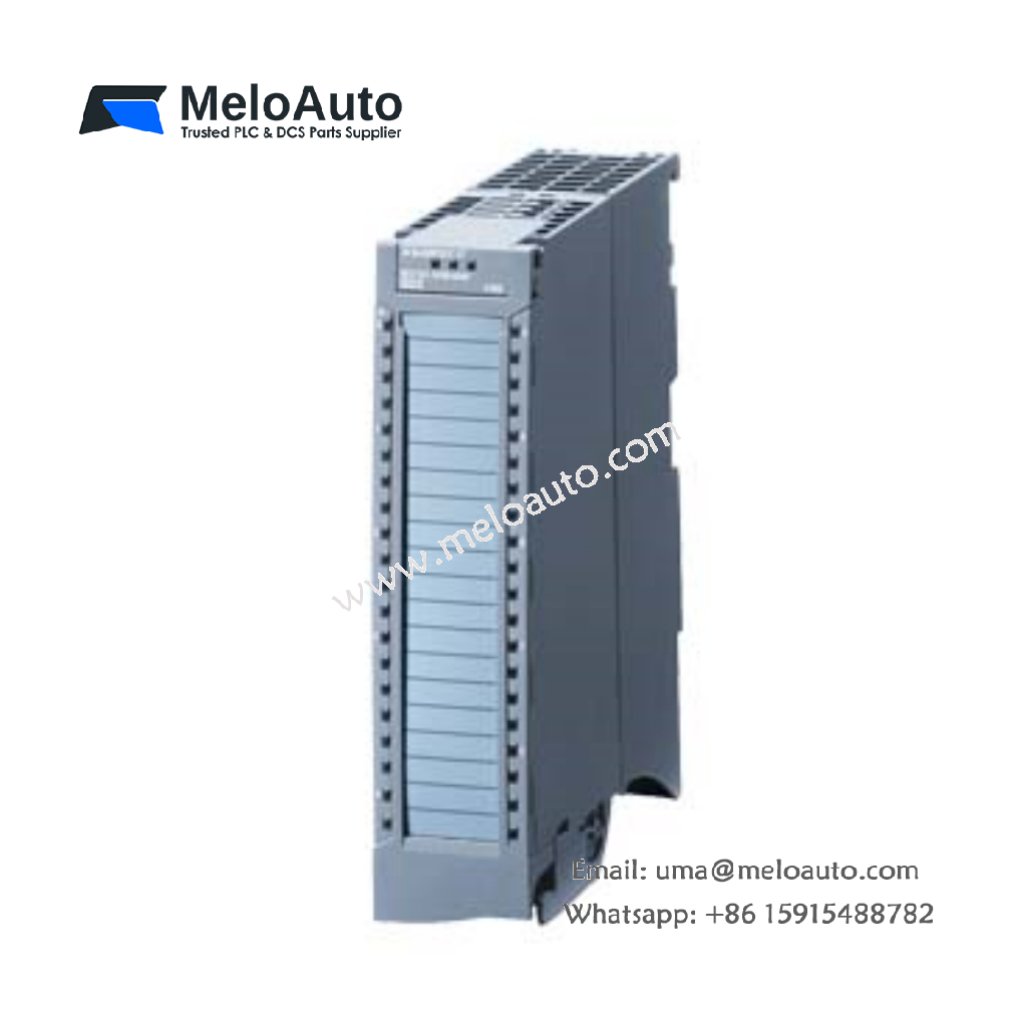

Siemens SIMATIC S7-1500 6ES7531-7KF00-0AB0 Analog Input Module

High-Performance Analog Input Module for S7-1500 Systems

The 6ES7531-7KF00-0AB0 is a versatile analog input module from Siemens’ SIMATIC S7-1500 series. It provides precise and flexible input processing for various analog signals. With high resolution and built-in diagnostics, it’s ideal for demanding automation tasks.

This module supports multiple signal types, including voltage, current, RTD, and thermocouples. It delivers fast, accurate measurements while supporting hardware interrupts and efficient diagnostics. Its design ensures robust operation in industrial environments.

The module includes an infeed element, shield bracket, and terminal. Front connectors (screw or push-in) must be ordered separately.

Key Features

• Supports voltage, current, RTD, and thermocouple inputs
• 16-bit resolution ensures accurate measurements
• Integrated diagnostics for reliable operation
• Hardware interrupts enable responsive control
• Compact design saves cabinet space
• Suitable for harsh industrial conditions
• Easy to integrate into S7-1500 systems

Technical Specifications

• Input Channels: 8 (grouped)
• RTD Channels: 4
• Resolution: 16 bit
• Accuracy: ±0.3%
• Common Mode Voltage: 10 V
• Net Weight: 0.413 kg
• Package Dimensions: 16.10 x 19.30 x 5.00 cm
• EAN: 4025515079514
• UPC: 887621139148
• Commodity Code: 85389091
• Country of Origin: Germany
• Compliance: RoHS, WEEE, REACH
• SCIP Number: ef1c9a97-c952-4426-b577-8f941d127df2

Product Lifecycle & Delivery

• Product Lifecycle: Active (PM300)
• Lead Time: 1 day (ex-works)
• Packaging Unit: 1 piece

Classification Codes

• eClass: 27-24-22-01
• ETIM: EC001420
• UNSPSC: 32151705
