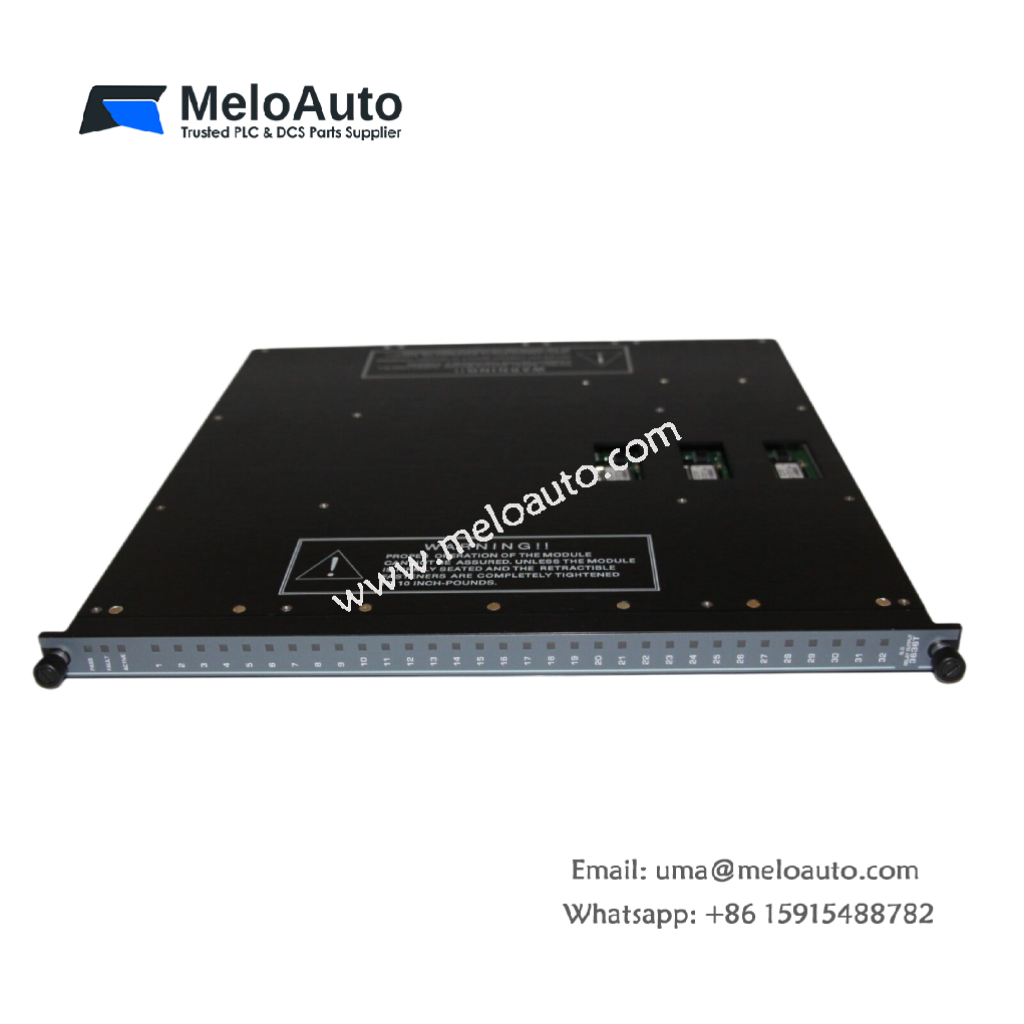

Triconex 3636R / 3636T Relay Output Module

Brand: TRICONEX
Product Family: Tricon Systems
Model Number: 3636R / 3636T
Type: Relay Output Module
Product Origin: USA
Payment: T/T, Western Union, Credit Card
Price: USD 120
Dimensions:(W x L x H) 4.5 in (11.43 cm) x 5 in (12.7 cm) x 4.25 in (10.795 cm)
Weight: 1.2 kg
Warranty: 12 months

  • Product Details
  • Technical Documentation

Overview

The Triconex 3636R and 3636T Relay Output (RO) Modules are non-triplicated modules designed for interfacing with non-critical points where “high-side” solid-state output switches are not compatible, such as with annunciator panels. The modules receive output signals from the Main Processors, process the data using a voting mechanism, and drive 32 individual relays accordingly. The modules feature diagnostic capabilities, loopback circuits, and can support hot-spare configurations for enhanced reliability.

Key Features

FeatureDescription
Model Numbers3636R, 3636T
FunctionRelay Output (RO) Module
Relay TypeNormally Open (NO) contacts
Relay Channels3 channels (with voting for 32 individual relays)
Diagnostic CapabilityLoopback circuit to verify each relay’s operation
Fault IndicatorActivates if any diagnostic fails, triggering chassis alarm
External Termination PanelRequired for interfacing with Tricon backplane
Hot-Spare ModulesSupported for enhanced reliability
Use CaseNon-critical points like interfacing with annunciator panels

Specifications

  • Relay Configuration: 32 individual relays with voting logic to drive the outputs

  • Diagnostics: The loopback circuit verifies relay function independently of the load

  • Fault Handling: Faults activate the Fault Indicator, which triggers the Chassis Alarm

  • External Termination Panel (ETP): Required for connecting to the Tricon backplane

  • Compatibility: Designed for use in environments where high-side solid-state switches are not suitable
