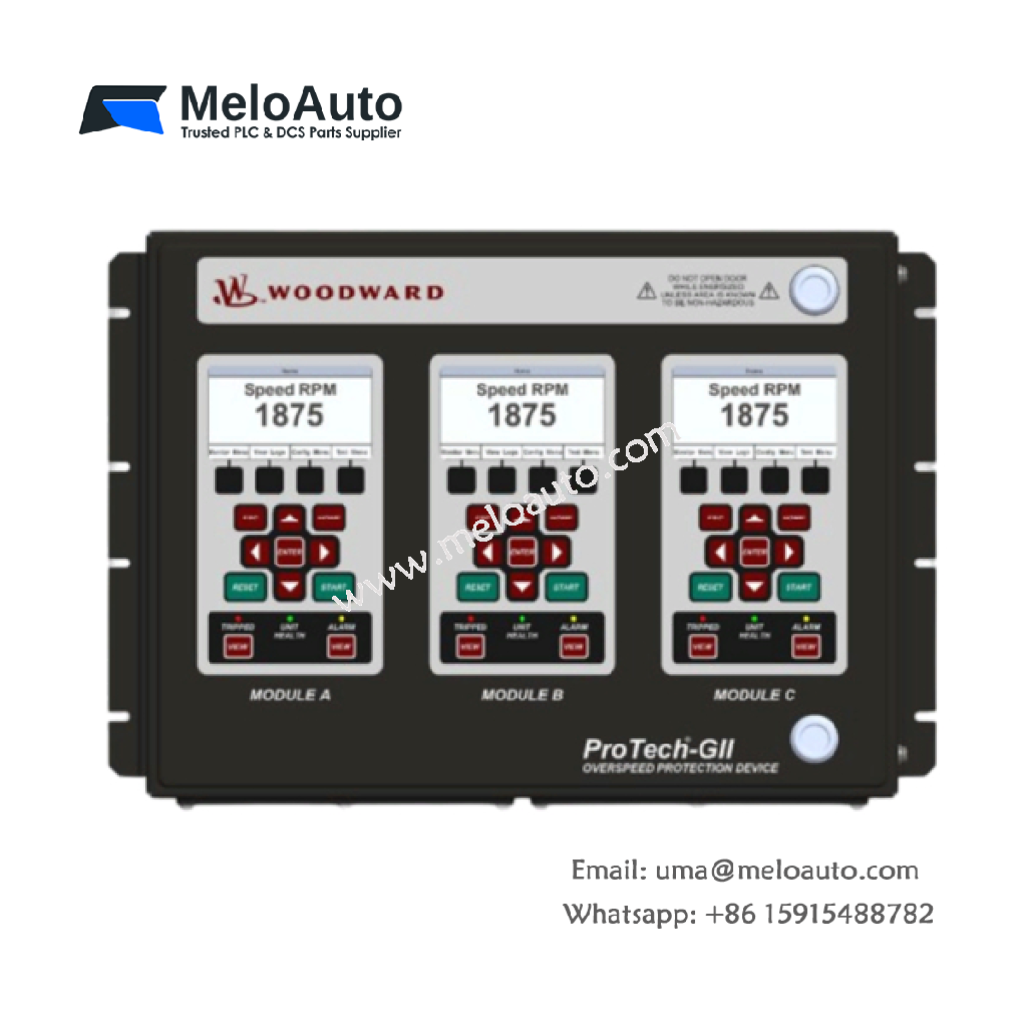

WOODWARD 8237-1600 ProTech-GII HV/LV Panel Module

Overview

The WOODWARD 8237-1600 ProTech-GII is a sophisticated overspeed safety device designed to protect steam, gas, and hydro turbines by providing rapid shutdown in the event of overspeed or over-acceleration. With its advanced 2-out-of-3 voting logic and redundant architecture, the ProTech-GII ensures that unsafe conditions are detected and acted upon without risk of single-point failure. It is widely used in critical applications to maintain both personnel safety and system uptime.

Key Features

• Overspeed & Over-Acceleration Protection: The ProTech-GII monitors turbine rotor speed and acceleration, instantly issuing a shutdown command to prevent damage.

• Independent or Voted Outputs: Trip outputs are either independent or configured in a 2-out-of-3 voting scheme, ensuring high reliability.

• Multiple Interfacing Options: Front panel access for monitoring and configuration, Modbus interface for remote data access, and a Programming and Configuration Tool (PCT) for PC-based management.

• Time-Stamped Logs: Includes Alarm and Trip logs with time stamps and first-out indications, ensuring full event traceability.

• Test Routines: Predefined test routines, including an automated periodic test, to verify proper system operation.

Technical Specifications

• Model Number: 8237-1600

• Mounting Type: Panel Mount

• Voltage: HV/LV

• Relay Type: Voted Relays

• Input Type: Voted Inputs (3 modules)

• Speed Range: 0.5 to 32,000 RPM

• Response Time: 8-26 milliseconds (depending on configuration)

• Analog Output: Provides an analog speed output for real-time monitoring.

• Certifications: IEC61508 SIL-3 (Safety Integrity Level 3)

Applications

The ProTech-GII is ideal for use in turbines, reciprocating engines, compressors, and critical rotating machinery across various industries. It excels in environments where both safety and reliability are paramount, such as:

• Steam, gas, and hydro turbines

• Rotating motors, compressors, and engines

• Critical plant process equipment

The ProTech-GII ensures that operations continue smoothly, even during system component failures, by providing continuous monitoring and fault detection.

Model Variants

WOODWARD offers various configurations to meet specific requirements:

• 8237-1594: Bulkhead Mount, HV/LV, Ind Relay, Voted Inputs

• 8237-1598: Panel Mount, HV/LV, Ind Relay, Voted Inputs

• 8237-1595: Bulkhead Mount, HV/HV, Ind Relay, Voted Inputs

• 8237-1599: Panel Mount, HV/HV, Ind Relay, Voted Inputs

• 8237-1596: Bulkhead Mount, HV/LV, Voted Relays, Voted Inputs

• 8237-1600: Panel Mount, HV/LV, Voted Relays, Voted Inputs (this model)

• 8237-1597: Bulkhead Mount, HV/HV, Voted Relays, Voted Inputs

• 8237-1601: Panel Mount, HV/HV, Voted Relays, Voted Inputs

• 8237-1656: Bulkhead Mount, HV/HV, Voted Relays, Voted Inputs – Limited Functions

• 8237-1660: Panel Mount, HV/HV, Voted Relays, Voted Inputs – Limited Functions

• 5437-1126:  Spare Module for 8237-1594, 8237-1598
• 5437-1127 :  Spare Module for 8237-1595, 8237-1599
• 5437-1124 :  Spare Module for 8237-1596, 8237-1600
• 5437-1125 :  Spare Module for 8237-1597, 8237-1601

Compliance

• Standards Compliance: Meets API-670, API-612, API-611, IEC61508 (SIL-3).

• Safety Certifications: IEC61508 SIL-3 certified for safety-critical applications.

• RoHS Compliance: The product is RoHS-compliant and does not contain hazardous substances in excess of the prescribed limits.
