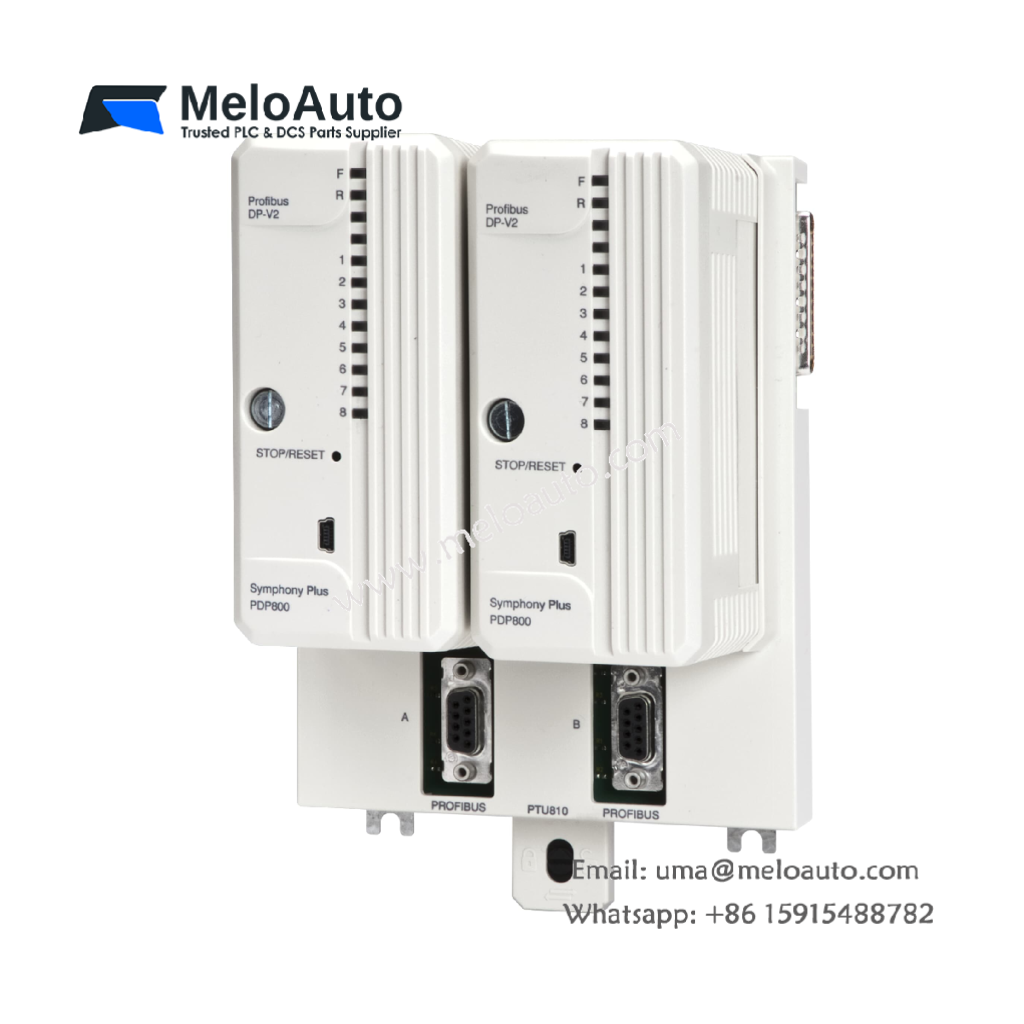

ABB PDP800 Profibus DP V0/V1/V2 Master Module

Overview

The ABB PDP800 is a robust Profibus DP Master Module that supports DP V0, V1, and V2 protocols, providing seamless integration with a wide range of field devices. This module enables high-speed, reliable communication for distributed I/O systems within ABB Symphony Plus control systems.

Key Features

Comprehensive Protocol Support

Supports Profibus DP V0, V1, and V2
Compatible with legacy and modern field devices

High-Speed Communication

Supports transmission speeds up to 12 Mbps
Handles up to 125 Profibus slaves

Flexible Integration

Designed for SD Series I/O Interface
Integrates seamlessly with ABB Symphony Plus control platforms

Compact and Modular Design

Width: 170.18 mm
Height: 73.66 mm
Depth: 243.84 mm
RoHS compliant and WEEE Category 5

Reliable Performance

Built for industrial environments
No batteries required
EU SCIP compliance ID: ee992a53-7458-41e4-9fcc-cbee2d4b9d5b

Applications

Distributed I/O communication in process automation
Integration of Profibus-compatible devices
Upgrading legacy systems to modern Profibus DP standards

Ordering and Compliance

Product ID: PDP800
HS Code: 85176200
Customs Description: Machines for the reception, conversion, transmission or regeneration of data in wired or wireless networks
Country of Origin: Lithuania
RoHS: In compliance with EU Directive 2011/65/EU
